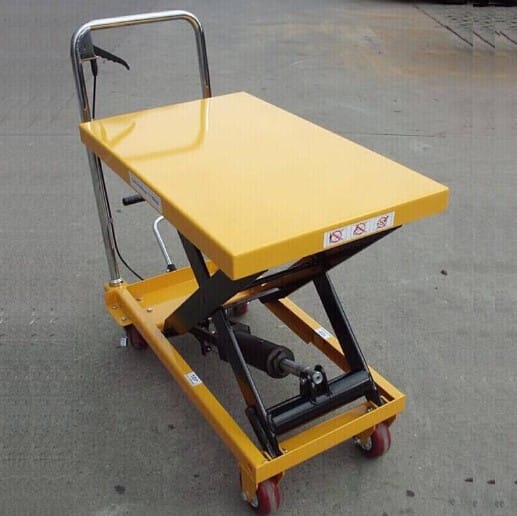

1 meter scissor lift for sale：
Rated Loading Capacity：100kg-2000kg
Max. Lifting Height：1000mm
Power: Manual Hydraulic or battery
Walking: hand push/assist walking
Certification:CE, GS, SGS, ISO9001 Lift Table
Color: Yellow or customer specified
1.Load capacity up to 1200kg and with 1300mm max height;
2. Push buttons to raise and lower lift are located on power unit;
3. With man-machine syncretic multifunctional control handle, step-less speed regulator and integrated hydraulic pump stations to ensure a smooth lifting powerful and high power drive;
4. Large capacity VARTA battery without maintenance;
5. Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst;
6. Self lubricating bushings on pivot points;
|
Model |
Capacity (kg) |
Table Size (mm) |
Table Height (Min./Max. mm) |
Wheel Dia. (mm) |
Package Size (mm) |
Net Weight (kg) |
|
CPTD500 |
500 |
905*550 |
360/1500 |
125 (5″) |
1020*520*360 |
110 |
|
CPTD800 |
800 |
1200*610 |
450/1500 |
125 (5″) |
1380*610*460 |
150 |
|
CPTD1000 |
1000 |
1200*610 |
500/1700 |
150 (6″) |
1370*610*500 |
225 |
|
CPTD1500 |
1500 |
1200*610 |
500/1700 |
150 (6″) |
1370*610*500 |
225 |

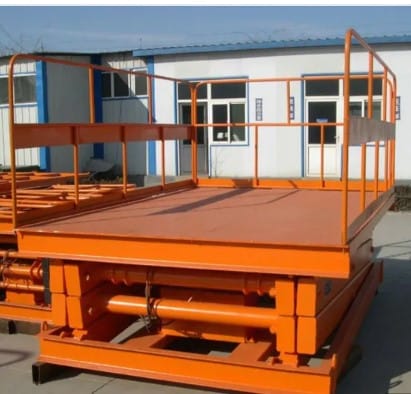

1 meter stationary scissor lift：
Rated Loading Capacity: 500kg-40ton
Max. Lifting Height: 1000mm
Type: Electric hydraulic
Power supply: three-phase alternating current
Table size: specified by customer
1 meter stationary scissor lift is used for transporting goods between the building floors, scissor mini lift platform is mainly used in workshop, warehouse, underground garage storage between car lift and other places need to lift goods up and down. Its hydraulic system has fall protection device, overload protection device. Emergency falling device when power is off. Cargo lift has strong structure, large loading capacity, smooth movements, easy to install and maintain. 1 meter stationary scissor lift is economical and practical cargo transportation equipment.
Advantages:
. Safety cut-off bar fitted to the underside of the platform stops table from lowering in the case of an obstruction;
. Total stop brakes prevents the table from moving when loading and unloading;
. With anti-pinch and overload protection function;
. All-steel frame with powder-coat finish for maximum durability and protection.
. Sideways battery charger for rapid charging operation;
. Side door design is convenient for maintenance;
. Moves easily on 4-polyurethane casters, 2 swivel with brakes and 2 rigid;
. Custom sizes and capacities can be designed for your specific needs.
