10 Foot (3 meter) Scissor Lift for Sale

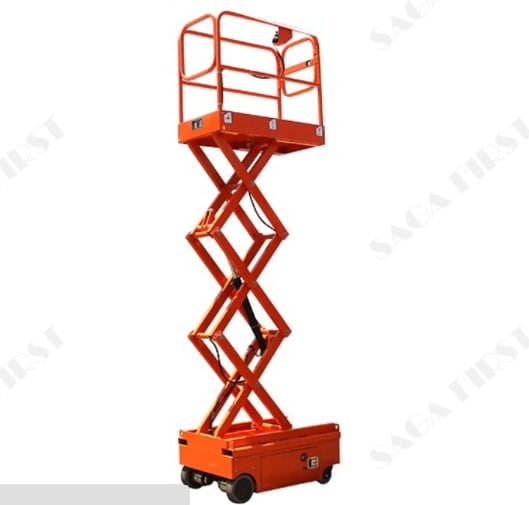

3 meter 10 feet mini scissor lift:
Rated Loading Capacity: 300kg
Max. Lifting Height: 3-5.8m
Lift Drive / Actuation:Electric hydraulic Motor
Weight:360kg
Certification:CE ISO SGS
Power supply: battery
10 foot (3 meter) is equipped with two kinds of motors, hydraulic lifting motor and electric driving motor. Hydraulic lifting motor supply power to lift up and down smoothly. Electric driving motor supply power to move forward, backward, turn around. 10 foot (3 meter) is famous for its small compact body size, simple structure and very low failure rate. Small scissor lift moves and lifts all by battery power. Operator can control lifting, moving, turning and all movement on the platform through the control system.

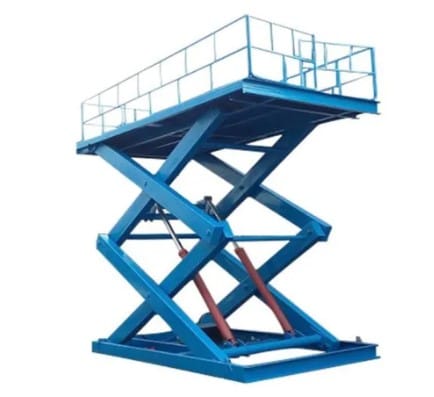

3 meter 10 feet stationary scissor lift with certificate
Rated Loading Capacity: 500kg-40ton
Max. Lifting Height: 3000mm
Type: Electric hydraulic
Power supply: three-phase alternating current
Table size: specified by customer
10 feet stationary scissor lift is a special auxiliary equipment to realize rapid loading and unloading of goods. Its height adjustment function connects with the trucks without goods in the warehouse and builds a bridge between forklift handling vehicles. Through 10 feet stationary scissor lift, the goods can be loaded and unloaded in batches directly inside the vehicle. 10 feet stationary scissor lift not only can you reduce labor intensity, but also can exponentially improve the efficiency of loading and unloading operations, speed up the flow of materials, obtain greater economic benefits. 10 feet stationary scissor lift when the choose and buy, the price, configuration, etc. More important, but the customer should first understand lift platform of service object, carrying capacity, and performance requirements, in order to better choose their own products, please note that from the overall comparison: including the purchase cost, lift platform construction, use and after cost total cost, the customer must comprehensive comparison.
MAIN PARTS
|
Platform |
Checkered Steel Plate reinforced by high strength channel steel. |
|
Scissor structure |
Manganese steel rectangular tube, I-iron sealed by steel plate ormanganese steel plate. |
|
Control apparatus |
Brand DEXILI, Siemens or Schneider. |
|
Pump station |
Brand Italy Hydrappp or Lisheng. |
|
Hydraulic cylinder |
Both way high precision wear-resiting hydraulic cylinder with locking device for fall protection. ement system. |
|
Hydraulic pipe |
High pressure pipe with double expanded metal protected. |
|
Hydraulic oil |
32# antiwear hydraulic oil. (according to the local temperature |
|
Model |
Capacity(kgs) |
Min height(mm) |
Lifting range (mm) |
Platform size (mm) |
Motor power (kw) |
Weight(kgs) |
|
SJG0.3-3 |
300 |
650 |
3000 |
200*1200 |
1.1 |
780 |
|
SJG0.5-5 |
500 |
850 |
5000 |
2000*1000 |
2.2 |
1200 |
|
SJG1-3.3 |
1000 |
840 |
3300 |
1900*1500 |
3 |
1300 |
|
SJG1-4.3 |
1000 |
860 |
4300 |
2500*2000 |
3 |
2500 |
|
SJG1-6 |
1000 |
1230 |
6000 |
2200*1500 |
2.2 |
2500 |
|
SJG2-3.5 |
2000 |
1000 |
3500 |
2200*1500 |
3 |
1800 |
|
SJG3-4.5 |
3000 |
1060 |
4500 |
2200*1800 |
4 |
2200 |
|
SJG1.5-3 |
1500 |
820 |
3000 |
1800*1200 |
2.2 |
1480 |
|
SJG2-4.8 |
2000 |
980 |
4800 |
2000*2000 |
4 |
2200 |
|
SJG2-6 |
2000 |
1150 |
6000 |
2200*2000 |
5 |
2800 |
|
SJG1-8 |
1000 |
1320 |
8000 |
2200*1800 |
4 |
3000 |
|
SJG2-9 |
2000 |
1400 |
9000 |
2500*1800 |
7.5 |
3800 |
|
SJG2-11 |
2000 |
1900 |
11000 |
2500*1500 |
7.5 |
4100 |
|
SJG3-10 |
3000 |
2100 |
10000 |
2500*1500 |
7.5 |
4300 |
