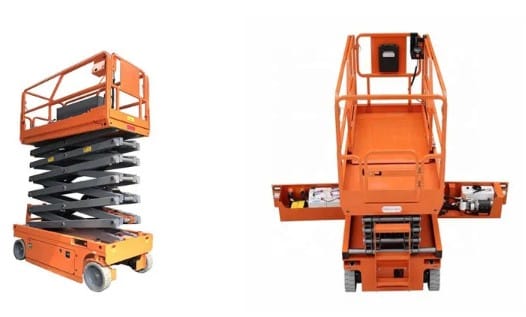

12 Feet (3.6 meter) Scissor Lift Dealer
Rated Loading Capacity: 320kg 480kg
Min. Lifting Height: 800mm
Max. Lifting Height：16000mm
Main Material:High duty steel
After-sales Service Provided:Field installation, commissioning and training
Platform:Anti-skid Checkered Plate
Voltage:110V, 220V, 380V, customized
| Model | Platform size | Lift capacity | Height | Overall size(mm) | Self-weight(kg) |
| SJYZ06A | 2260*810mm | 380kg | 6m | 2475*810*2158 | 1850kg |
| SJYZ06 | 2260*1130mm | 550kg | 6m | 2475*1150*2158 | 2060kg |
| SJYZ08A | 2260*810mm | 320kg | 8m | 2475*810*2286 | 1980kg |
| SJYZ08 | 2106*930mm | 450kg | 8m | 2260*1130*1100 | 2190kg |
| SJYZ10 | 2260*1130 | 320kg | 10m | 2475*1150*1964 | 2430kg |
| SJYZ12 | 2260*1130 | 320kg | 12m | 2475*1150*2542 | 2960kg |
12 feet (3.6 meter) scissor lift design advantages
Flexible: can be used in small places, speed is adjustable.
Convenience: only one worker is required to complete the basic operations such as front, back and steering.
Larger working space: self-propelled scissors lifting platform can be extended to expand the working space.
Safety bar: when the machine needs maintenance, the safety bar can be propped up to ensure safety.
Hydraulic motor: front wheel steering drive is driven by hydraulic motor
12 feet (3.6 meter) scissor lift characteristics
- Strong professionalism and small production volume for the industry.
2, with high-tech requirements, high added value characteristics.
3, the security system is high, usually tailored according to the working environment.
The self-propelled aerial work platform is an aerial work platform that is driven by a battery and can control walking and steering on the countertop. The maximum height can be walked, the pothole protection system provides maximum safety, the operation is very automatic, the safety of the ground clearance, the indoor operation can be carried out, strong, reliable, easy to maintain, standard accessories, traceless tires, slope alarm, Two-wheel speed, free turn, charging indicator, timer, emergency descent system.
The self-propelled lift has self-propelled and steering drive functions, does not require external power traction, and does not require an external power supply. Only one person can complete the operations of advancing, retreating, ascending, descending, turning left, and turning right of the lifting platform, greatly improving the work. Efficiency, reducing the number of operators and labor, dynamic strength, more labor and effort.
