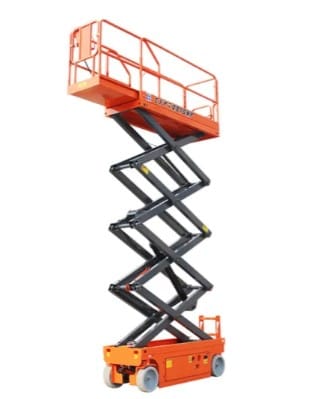

19 Foot Scissor Lift supplier
Rated Loading Capacity: 320kg 480kg
Min. Lifting Height: 800mm
Max. Lifting Height: 16000mm
Lift Drive / Actuation:Hydraulic electric
After-sales Service Provided:Field installation, commissioning and training
Platform:Anti-skid Checkered Plate
Voltage:110V, 220V, 380V, customized
A hydraulic pump drives 19-foot scissor lifts, the rate of flow is 16L/min. When the pump is activated, 19-foot scissor lift supplies hydraulic fluid under pressure to the function manifold, where the direction valves and control valves are located. To protect from over pressurization of the hydraulic system, the pump is provided with a pressure relief valve.
In this system, Use four six-volt batteries to drive the hydraulic pump and lift function controls. Batteries are charged by external power source. 19 foot scissor lift is equipped with operational controls, which is located in the ground controls box. The controls transfer data through a high-speed data bus.
| Model | Platform size | Lift capacity | Height | Overall size(mm) | Self-weight(kg) |
| SJYZ06A | 2260*810mm | 380kg | 6m | 2475*810*2158 | 1850kg |
| SJYZ06 | 2260*1130mm | 550kg | 6m | 2475*1150*2158 | 2060kg |
| SJYZ08A | 2260*810mm | 320kg | 8m | 2475*810*2286 | 1980kg |
| SJYZ08 | 2106*930mm | 450kg | 8m | 2260*1130*1100 | 2190kg |
| SJYZ10 | 2260*1130 | 320kg | 10m | 2475*1150*1964 | 2430kg |
| SJYZ12 | 2260*1130 | 320kg | 12m | 2475*1150*2542 | 2960kg |

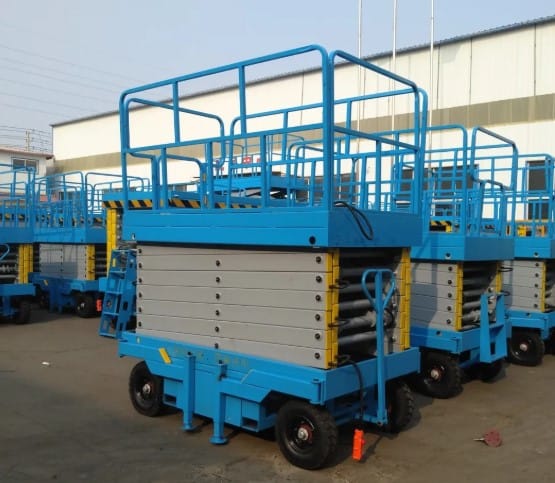

19 foot mobile scissor lift
Rated load: 300kg 500kg 1000kg 2000kg
Lifting height：3m 6m 8m 10m 12m 14m 16m 18m 20m
Walking mode: hand pull or assist walking
Power supply: ac, battery, diesel, manual
Type:Electric Hydraulic
19 foot mobile scissor lift is widely used for the equipment's installations and maintenance at the following places like construction sites workshops, warehouse, granary, bus/railway stations, hotels, airports, gas station and aerial pipeline. Scissor hydraulic lift is the professional high-altitude operation equipment. 19 foot mobile scissor lift scissor mechanical structure makes the lifting platform lift more stably. Wide working platform and large loading capacity can make the work scope bigger. 19 foot mobile scissor lift is suitable for several people working together. Lifting height: 4m, 6m, 8m, 10m, 11m and so on. And the max height of the scissor lift is 18m. Loading capacity: 300kg, 500kg, 800kg, 1000kg and so on.
|
Model |
Platform Dimension (mm) |
Load (Kg) |
Lifting height (m) |
Overall dimensions (mm) |
Overall weight (Kg) |
|
|
QYCY0.5-6 |
2100*830 |
500 |
6 |
2250*950*1200 |
880 |
|
|
QYCY0.5-7 |
2100*830 |
500 |
7 |
2250*950*1280 |
970 |
|
|
QYCY0.5-8 |
2100*930 |
500 |
8 |
2250*1060*1380 |
1050 |
|
|
QYCY0.5-9 |
2100*930 |
500 |
9 |
2250*1060*1500 |
1165 |
|
|
QYCY0.5-10 |
2100*1230 |
500 |
10 |
2250*1350*1530 |
1360 |
|
|
QYCY0.5-11 |
2100*1230 |
500 |
11 |
2250*1350*1650 |
1400 |
|
|
QYCY0.5-12 |
2550*1530 |
500 |
12 |
2796*1670*1750 |
2260 |
|
|
QYCY0.5-14 |
2812*1530 |
500 |
14 |
3067*1730*1810 |
2486 |
|
|
QYCY0.5-20 |
3500*1800 |
500 |
20 |
4000*2300*2400 |
5500 |
|
|
QYCY0.3-16 |
2812*1600 |
300 |
16 |
3067*1810*2080 |
3063 |
|
|
QYCY0.3-18 |
3070*1600 |
300 |
18 |
3321*1810*2080 |
3900 |
|
|
QYCY1.0-4 |
2100*1200 |
1000 |
4 |
2250*1350*1180 |
1250 |
|
|
QYCY1.0-6 |
2100*1200 |
1000 |
6 |
2250*1350*1300 |
1400 |
|
|
QYCY1.0-8 |
2100*1200 |
1000 |
8 |
2250*1350*1420 |
1585 |
|
|
QYCY1.0-10 |
2100*1200 |
1000 |
10 |
2250*1350*1530 |
1700 |
|
|
QYCY1.0-12 |
2550*1530 |
1000 |
12 |
2796*1670*1750 |
2560 |
|
|
QYCY1.0-14 |
2812*1600 |
1000 |
14 |
3067*1810*1900 |
3230 |
|
|
QYCY1.5-6 |
2100*1530 |
1500 |
6 |
2250*1750*1530 |
1780 |
|
|
QYCY1.5-8 |
2100*1530 |
1500 |
8 |
2250*1750*1690 |
2070 |
|
|
QYCY1.5-10 |
2100*1530 |
1500 |
10 |
2250*1750*1850 |
2250 |
|
|
QYCY1.5-12 |
2550*1530 |
1500 |
12 |
2796*1762*1850 |
2900 |
|
|
QYCY1.5-14 |
2816*1600 |
1500 |
14 |
3045*1852*1960 |
3400 |
|
|
QYCY2.0-6 |
2100*1530 |
2000 |
6 |
2250*1750*1530 |
1780 |
|
|
QYCY2.0-8 |
2100*1530 |
2000 |
8 |
2250*1750*1690 |
2070 |
|
|
QYCY2.0-10 |
2100*1530 |
2000 |
10 |
2250*1750*1850 |
2250 |
|
|
QYCY2.0-12 |
2550*1600 |
2000 |
12 |
2796*1852*1954 |
3200 |
|
|
QYCY2.0-14 |
2816*1600 |
2000 |
14 |
3067*1852*2230 |
3900 |
