2 Ton Scissor Lift Dealer
2 ton scissor lift, such as fast loading and unloading of goods supported by storage and loading and unloading places and forklifts, is a non-shear fork type hydraulic lifting platform, which is suitable for the transfer of goods between floors of industrial plants, steel structure factories with a height of 150-300mm. Without the need for upper lifting points, with diversified installation forms.
Load capacity: 0.5~40T
Lifting height: 0.5-8m
Power supply: 110~550V 3PH

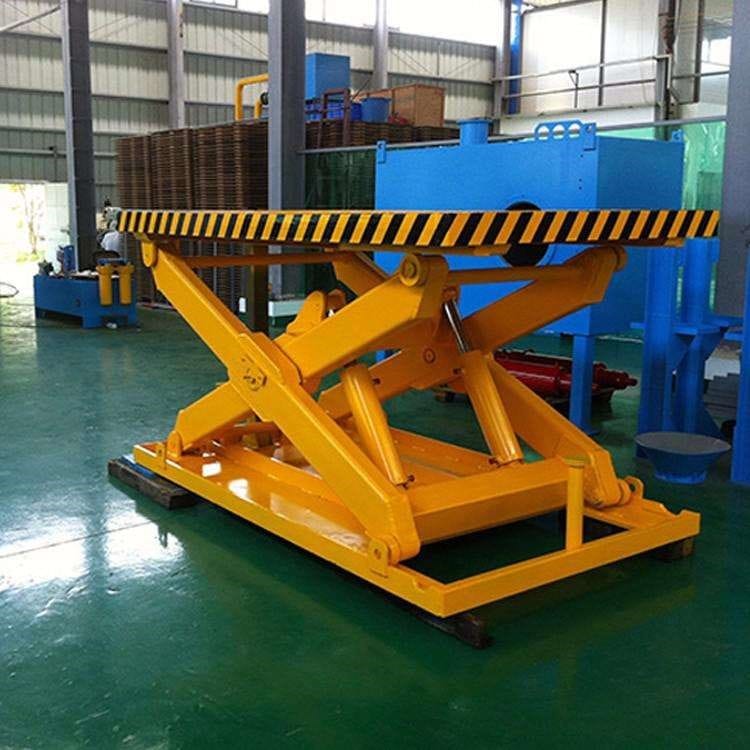

2 ton scissor lift is fixed type. 2 ton stationary scissor lift fixed unloading platform is a special auxiliary equipment to realize rapid loading and unloading of goods. Its height adjustment function connects with the trucks without goods in the warehouse and builds a bridge between forklift handling vehicles. Through it, the goods can be loaded and unloaded in batches directly inside the vehicle.
|
Model |
Capacity(kg) |
Min. Height(mm) |
Lifting height(mm) |
Platform size(mm) |
Lifting time(s) |
Motor power(kw) |
Motor power(kw) |
Weight(kg) |
|
SJG0.8-1.2 |
800 |
300 |
1200 |
1200X1000 |
16 |
380V/50HZ |
1.1 |
420 |
|
SJG1-1.7 |
1000 |
350 |
1700 |
1500X1000 |
28 |
380V/50HZ |
1.5 |
600 |
|
SJG1.5-1.2 |
1500 |
350 |
1200 |
1500X1000 |
23 |
380V/50HZ |
3 |
650 |
|
SJG1.5-2.4 |
1500 |
500 |
2400 |
2000×1000 |
25 |
380V/50HZ |
3 |
900 |
|
SJG2-1.6 |
2000 |
500 |
1600 |
1500X1200 |
41 |
380V/50HZ |
1.5 |
860 |
|
SJG2.5-2 |
2500 |
620 |
2000 |
2200X1200 |
40 |
380V/50HZ |
3 |
1300 |
|
SJG3-1.2 |
3000 |
415 |
1200 |
1600X1600 |
30 |
380V/50HZ |
3 |
1100 |
|
SJG4-2.3 |
4000 |
660 |
2300 |
2200X1000 |
53 |
380V/50HZ |
5.5 |
1500 |
|
SJG5-1.5 |
5000 |
460 |
1500 |
1700X1000 |
50 |
380V/50HZ |
4 |
1450 |
Why choose DFLIFT hydraulic scissor lift table?
2 ton stationary scissor lift of the effective quality of work is known, and fixed lifting platform is widely used in the forestry and coal mines and other aspects, so we know what advantages are fixed lifting platform? Is a good lifting stability, wide range of goods lifting equipment mainly used for production line height difference between goods transport; Material online and offline; Adjust the height of work piece during assemble. High feeder feeding; Lifting of components during assembly of large equipment. Large machine tool feeding and discharging.
