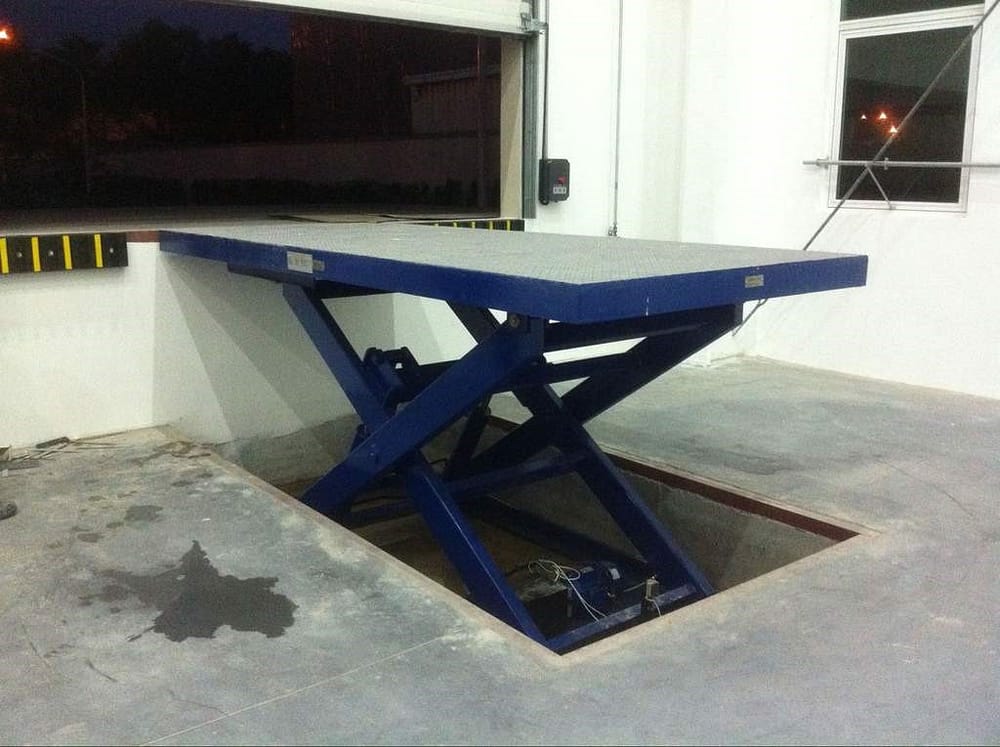

3 ton scissor lift factory
3 ton scissor lift is mainly by hydraulic pressure drive so as to realize the function of lifting, the mechanical structure of it, to make the elevator hoisting has high stability, wide operating platform and high bearing capacity, make the platform operation range larger and suitable for people to work at the same time.
Rated load: 1 2 3 5 8 10 12 15 20 ton
Range of vertical stroke：0.5-8m
Power supply：Three-phase alternating current
3 ton scissor lift makes the work high above the efficient transport between floors is an elevator equipment ideal lifting equipment hydraulic oil made certain pressure vane pump, the oil filter flameproof electromagnetic directional valve throttle valve hydraulic control one-way valve. The balance valve enters the lower end of the cylinder to make the piston of the cylinder move upward and lift the heavy weight. The oil at the upper end of the cylinder returns to the oil tank through the flameproof electromagnetic reversing valve. Its rated pressure is adjust through the overflow valve and the pressure gauge is used to observe the reading value of the pressure gauge.
|
Model |
Capacity(KG) |
Vertical travel(MM) |
Min.Height(MM) |
Platform size(MM) |
Lip size(MM) |
Motor power(KW) |
|
SJG1.0-1.6 |
1000 |
1600 |
300 |
2500*1500 |
300 |
1.5 |
|
SJG1.5-1.6 |
1500 |
1600 |
360 |
2500*1500 |
300 |
2.2 |
|
SJG2.0-1.6 |
2000 |
1600 |
400 |
2500*1600 |
300 |
2.2 |
|
SJG3.0-1.6 |
3000 |
1600 |
400 |
2600*1800 |
300 |
3 |
|
SJG5.0-1.6 |
5000 |
1600 |
450 |
2600*1800 |
300 |
4 |
|
SJG6.0-1.6 |
6000 |
1600 |
540 |
2800*2000 |
300 |
5.5 |
|
SJG9.0-1.6 |
9000 |
1600 |
600 |
3000*1800 |
300 |
5.5 |
Why choose us:
DFLIFT is the professional manufacturer of hydraulic lifts for 20 years. Our factory covers 78500 square meters and has a series of modern production equipment, like auto cutting equipment, automatic equipment, automatic abrasive blasting production rust removal line. Spray paint line, automatic welding robot and so on. We have been exporting to different many countries for 5 years.
Welcome to visit our factory and test our machines' quality, sincerely.
