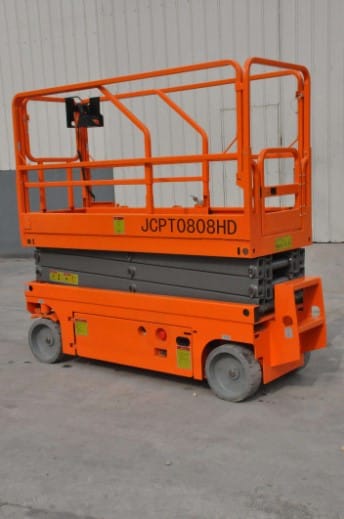

32 foot (10 meter) scissor lift
Rated Loading Capacity: 320kg 480kg
Min. Lifting Height: 800mm
Max. Lifting Height: 32 foot (10 meter)
Lift Drive / Actuation:Hydraulic electric
After-sales Service Provided:Field installation, commissioning and training
Platform:Anti-skid Checkered Plate
Voltage:110V, 220V, 380V, customized
32 foot (10 meter) scissor lift has many functions such as lifting work of engineering components, manned aerial work, lifting work of equipment and data, etc. 32 foot (10 meter) scissor lift is mainly used for the decoration and maintenance of steel plant, exhibition hall and other buildings and the overhaul of large equipment such as aircraft. 32 foot (10 meter) scissor lift for industry use can progress high work efficiency, improve working conditions, high cutting overhead work. This article based on the shear fork self-propelled aerial work platform protection plate lifting organization function request, planning a lifting mechanism between the lever the organization, 32 foot (10 meter) scissor lift contains the orientation structure and connecting rod drive two parts, to clarify the effect principle and planning parameters.
| terms | SJZ-6 | SJZ-8 | SJZ-10 | SJZ-12 | SJZ-14 |
| Capacity | 230kg | 230kg | 320kg | 320kg | 200kg |
| capacity-extension deck | 113kg | 113kg | 113kg | 113kg | 113kg |
| Max working height | 8m | 10m | 12m | 14m | 16m |
| Max platform height | 6m | 8m | 10m | 12m | 14m |
| Overall dimension | 1.86*0.76*1.85m | 2.42*0.83*2.07m | 2.42*1.17*1.93m | 2.42*1.17*2.06m | 2.79*1.27*2.06m |
| Platform size | 1.67*0.74m | 2.27*0.83m | 2.27*1.14m | 2.27*1.14m | 2.64*1.14m |
| Extension size | 900mm | 900mm | 900mm | 900mm | 900mm |
| Wheelbase | 1400mm | 1870mm | 1870mm | 1870mm | 2240mm |
| Min turning radius | 1600mm | 2250mm | 2230mm | 2230mm | 2250mm |
| lifting/driving motor | 24v/3.0kw | 24v/3.3kw | 24v/3.3kw | 24v/4.5kw | 24v/4.5kw |
| Driving speed (fold) | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h |
| Driving speed (rising) | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h |
| Battery | 4*6v/225Ah | 4*6v/225Ah | 4*6v/240Ah | 4*6v/260Ah | 4*12v/300Ah |
| Charger | 24v/25A/Customized | 24v/25A/Customized | 24v/25A/Customized | 24v/25A/Customized | 24v/25A/Customized |
| Grade ablity | 25% | 25% | 25% | 25% | 25% |
| Tires | non-marking tires | non-marking tires | non-marking tires | non-marking tires | non-marking tires |
| Weight | 1260kg | 2100kg | 2480kg | 3100kg | 3180kg |
|
em |
Part name |
Material and Description |
|
1 |
Platform |
3mm Plate bending |
|
2 |
Scissor supporting rod |
120*60*4mm high quality rectangular tube |
|
3 |
Underframe |
100*50*4mm high quality rectangular tube |
|
4 |
Guide rail groove |
5mm Plate bending Guide wheel is made of nylon slide to guarantee the contact area, Up/down steadily and shake smally |
|
5 |
Oil cylinder |
HSG80/45*1 with explosion-proof valves(prevent the tubing fracture) and Japan VALQUA seal ring(wear well and nondisclosure) |
|
6 |
Hydraulic pipe |
2-10-43MPa double steel-net high pressure oil pipe |
|
7 |
Pump station |
With emergency decline valve: it can go down by manual operation With spillover valve: it can prevent high pressure when the machine moves up |
|
8 |
Power and voltage |
1.5kw/220v/50Hz |
|
9 |
Tire |
400-8*4 pneumatic tyre |
|
10 |
outrigger |
100*50*4mm rectangular tube |
|
11 |
Distribution box |
Brand name: Delixi With thermal overload protection and phase shortage protection |
|
12 |
Control type |
Up and down by electric with emergency stop button to protect the operator Operated by 24V safe voltage |
|
13 |
Travel switch |
Brand name: Shanghai People Electric Switch Factory |
|
14 |
Axle pin |
45# round steel, thermal refining With SF-2Oil-free self-lubricating bearings between the axle pins |
|
15 |
Hydraulic oil |
32# antiwear hydraulic oil |
|
16 |
Up/down speed |
4-6m/min Down speed can be adjusted |
|
17 |
Derusting processing
|
shot blasting, abrasive blasting, Remove corrosion and splash of steel surface |
|
18 |
spraying treatment
|
electrostatic powder spray to guarantee excellent coating appearance |
Advantages
1) We can design the hydraulic scissor man lift as per your requirement.
2) The most suitable hydraulic scissor man lift will be recommended to you once we get your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) We could reply you in 2 hours after received your any questions even on weekend and holiday.
Engineers are available to your country if necessary.
