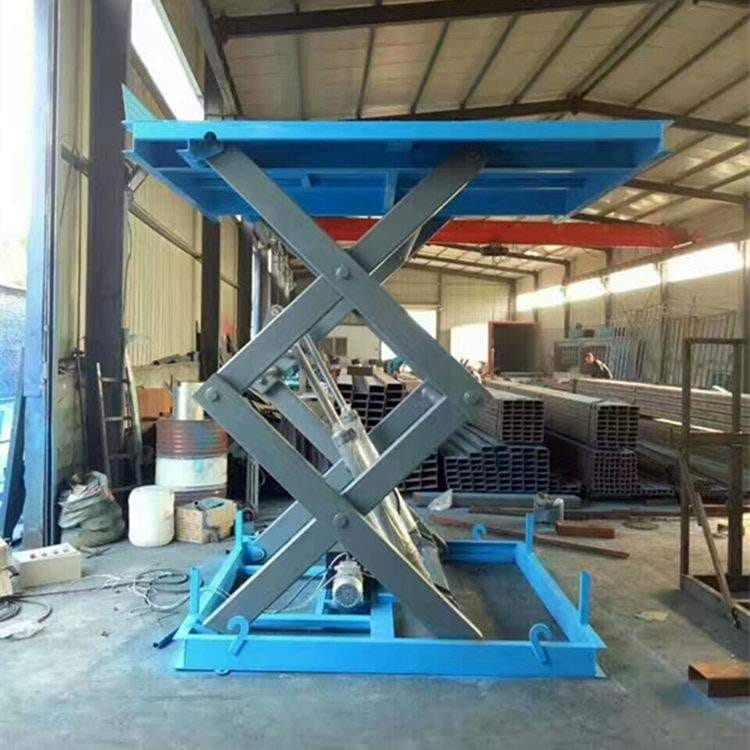

5 Ton Scissor Lift
Rated Loading Capacity:0.3t-20t
Max. Lifting Height: 1500mm
Voltage: DC 12V/24V AC 220V/380V
Usage: Lifting cargo
The electric vertical 5 ton scissor lift platform fixed scissor lift Industrial work lift table can be installed on ground to load cargo and then lifts till a certain height for unloading the cargo. It can be also install in a lift pit. Then platform table is at the same level with the ground, which is convenient to load the cargo onto it. In this way, it also can be called freight elevator. It adopts electric rise and down, which is much convenient.
|
Model |
capacity |
Min. height |
Lifting range |
Platform size |
Motor power |
Self-weight |
|
SJG0.3-3 |
300 |
650 |
3000 |
200*1200 |
1.1 |
780 |
|
SJG0.5-5 |
500 |
850 |
5000 |
2000*1000 |
2.2 |
1200 |
|
SJG1-3.3 |
1000 |
840 |
3300 |
1900*1500 |
3 |
1300 |
|
SJG1-4.3 |
1000 |
860 |
4300 |
2500*2000 |
3 |
2500 |
|
SJG1-6 |
1000 |
1230 |
6000 |
2200*1500 |
2.2 |
2500 |
|
SJG2-3.5 |
2000 |
1000 |
3500 |
2200*1500 |
3 |
1800 |
|
SJG3-4.5 |
3000 |
1060 |
4500 |
2200*1800 |
4 |
2200 |
|
SJG1.5-3 |
1500 |
820 |
3000 |
1800*1200 |
2.2 |
1480 |
|
SJG2-4.8 |
2000 |
980 |
4800 |
2000*2000 |
4 |
2200 |
|
SJG2-6 |
2000 |
1150 |
6000 |
2200*2000 |
5 |
2800 |
|
SJG1-8 |
1000 |
1320 |
8000 |
2200*1800 |
4 |
3000 |
|
SJG2-9 |
2000 |
1400 |
9000 |
2500*1800 |
7.5 |
3800 |
|
SJG2-11 |
2000 |
1900 |
11000 |
2500*1500 |
7.5 |
4100 |
|
SJG3-10 |
3000 |
2100 |
10000 |
2500*1500 |
7.5 |
4300 |
Features of stationery hydraulic lifting platform:
Main Features
1) Platform table: anti-slip checkered steel plate
2) Scissor structure: Manganese steel rectangular tube
3) Control equipment : Delixi, Siemens or Schneider brand.
4) Pump station: Italy Hydrappp or Sino-italian brand.
5) Hydro cylinder: high precision wear-resisting hydraulic cylinder with locking device for fall protection.
6) Obturating ring: Brand German Seal (made in German) or Japan VLQU Seal
7) Electrical up-down control device, or manual control when the electricity Is not available.
8) The remote control and multi-control points at the different floors could be realized at each control point.
Why choose us:
Our Hydraulic Stationary Scissor Lift With good lifting performance, it is suitable for goods production lines, lifting cargo among floors. According to the lift height and load capacity, it is classify to single scissor type, double scissor type and multi scissor type. Lift from 1-20m, 100kg-20Ton.The control mode and power supply voltage are customizable according to the different requirements of user and a separate design.
- The performance of stationary scissor lift table is excellent, suitable for goods production lines.
- Cargo handing the basement to the ground and transport of goods between floors.
- According to the height and weight of the different structure.
- Our hydraulic lift can be divide into single fork type, double fork and the fork.
