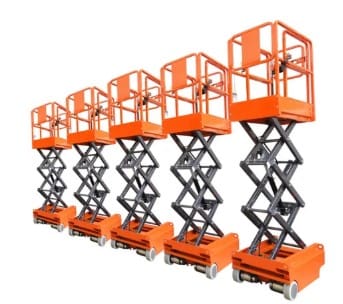

50 foot (15 meter) scissor lift
Rated Loading Capacity：300kg-500kg
Max. Lifting Height：50 foot (15 meter)
Grade ability:25%
Battery:4ps battery
50 foot (15 meter) scissor lift -- can work at different heights under the state of fast, slow walking, can be in the air convenient operation platform to complete up and down, forward, backward, steering and other work. 50 foot (15 meter) scissor lift adopts high quality steel, laser welding electronic manipulator single-sided double-sided molding process. Italy imported hydraulic pump station and joint venture in Anshan hydraulic pump station, space cartridge valve technology, platform equipped with level alarming device. The balance valve, the automatic warning device, such as safety board platform safe and reliable, durable. Homework can reach 15 meters high, weight 300 kilograms, level of fence can be extended greatly expanded the work scope, the machine one year warranty, key components warranty five years, suitable for factory workshop the lobby at the airport, square, park, etc have the work high above the needs of customers.
| terms | SJZ-6 | SJZ-8 | SJZ-10 | SJZ-12 | SJZ-14 |
| Capacity | 230kg | 230kg | 320kg | 320kg | 200kg |
| capacity-extension deck | 113kg | 113kg | 113kg | 113kg | 113kg |
| Max working height | 8m | 10m | 12m | 14m | 16m |
| Max platform height | 6m | 8m | 10m | 12m | 14m |
| Overall dimension | 1.86*0.76*1.85m | 2.42*0.83*2.07m | 2.42*1.17*1.93m | 2.42*1.17*2.06m | 2.79*1.27*2.06m |
| Platform size | 1.67*0.74m | 2.27*0.83m | 2.27*1.14m | 2.27*1.14m | 2.64*1.14m |
| Extension size | 900mm | 900mm | 900mm | 900mm | 900mm |
| Wheelbase | 1400mm | 1870mm | 1870mm | 1870mm | 2240mm |
| Min turning radius | 1600mm | 2250mm | 2230mm | 2230mm | 2250mm |
| lifting/driving motor | 24v/3.0kw | 24v/3.3kw | 24v/3.3kw | 24v/4.5kw | 24v/4.5kw |
| Driving speed (fold) | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h |
| Driving speed (rising) | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h |
| Battery | 4*6v/225Ah | 4*6v/225Ah | 4*6v/240Ah | 4*6v/260Ah | 4*12v/300Ah |
| Charger | 24v/25A/Customized | 24v/25A/Customized | 24v/25A/Customized | 24v/25A/Customized | 24v/25A/Customized |
| Grade ablity | 25% | 25% | 25% | 25% | 25% |
| Tires | non-marking tires | non-marking tires | non-marking tires | non-marking tires | non-marking tires |
| Weight | 1260kg | 2100kg | 2480kg | 3100kg | 3180kg |
50 foot (15 meter) scissor lift travelling speed is controlled by pendent. 50 foot (15 meter) scissor lift own automatic walking function. 50 foot (15 meter) scissor lift can be used in different working condition, and do not need external power supply and artificial traction. 50 foot (15 meter) scissor lift is mobile flexible, convenient operation, lift freely, only one people can finish forward, backward, steering, fast and slow walk. 50 foot (15 meter) scissor lift is easily moved with high working efficiency. 50 foot (15 meter) scissor lift can be moved while extended and controlled from platform by the operator. 50 foot (15 meter) scissor lift is walking, reversing, turning and lifting can be achieved on the platform board, self-movement at the full height. Low noise allows the operation personnel work in a silent environment and the large-angle steering system provides a good maneuverability.
Feature
1. 50 foot (15 meter) scissor lift is mainly used for lifting cargoes and delivering goods, high-altitude operations.
2. An ideal equipment of safe operation
3. 50 foot (15 meter) scissor lift t is characterized by great loading capacity.
4. Steady ascending and descending
5. New system increase safety and protects 4M-18M hydraulic mobile scissor lift
6. Mobile convenient ,easy to work.
7. Economy and practicability.
8. 50 foot (15 meter) scissor lift is applicable in the warehouse and garages and port ,building and so on.
