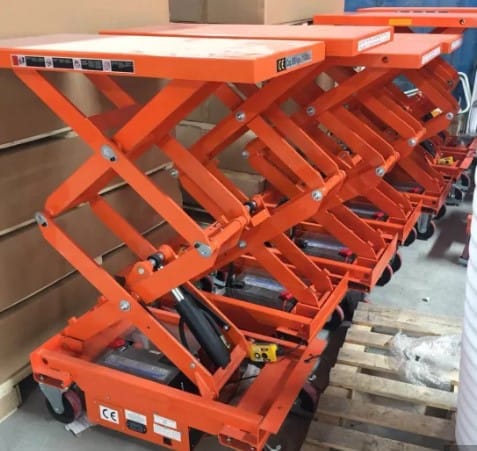

500kg (1100lbs.) scissor lift
Made of wide section manganese steel providing more stability when lifting Inching control for lifting and lowering, ground / platform control mode could be switched. Control voltage: DC 24V Equipped emergency lowering device, enable safe lowering when power off Double contactors and double limit switches are provided In chassis is slide-out engine tray, convenient for maintenance 500kg (1100lbs.) scissor lift are made for transportation.
500kg (1100lbs.) scissor lift table trolley price
Rated Loading Capacity: 350kg 500kg 1000kg
Lifting Height: 0.72-1.7meter
Certification: CE ISO9001
Wheel type: nylon
Power: Manual/battery
Table Size: 500*800, 450*700-500*815 or as your design
- Ultra-thin scissor structure, suitable for changing tires
- The minimum height only 110mm, ground installation
- Tanks in series, simple structure, good synchronization
- Scissor arms is made of whole steel plate, height-strength
- Electrostatic powder coating, attractive appearance
- Lifting finder strength-aid structure reduces the damage of original lifting to mechanical structure.
- DUPONT POWER painting, corrosion-resistant
|
Model |
Lift Height / F |
Work Height |
Load Capacity |
Platform Size |
Lift Speed |
|
SJY0.5-4 |
4 m |
6 m |
500 Kg |
2106*830 mm |
3-4 m/min |
|
SJY0.5-6 |
6 m |
8 m |
500 Kg |
2106*830 mm |
3-4 m/min |
|
SJY0.5-7 |
7 m |
9 m |
500 Kg |
2106*830 mm |
3-4 m/min |
|
SJY0.5-8 |
8 m |
10 m |
500 Kg |
2106*930 mm |
3-4 m/min |
|
SJY0.5-9 |
9 m |
11 m |
500 Kg |
2106*930 mm |
3-4 m/min |
|
SJY0.5-10 |
10 m |
12 m |
500 Kg |
2106*1230 mm |
3-4 m/min |
|
SJY0.5-11 |
11 m |
13 m |
500 Kg |
2106*1230 mm |
3-4 m/min |
|
SJY0.5-12 |
12 m |
14 m |
500 Kg |
2550*1530 mm |
3-4 m/min |
|
SJY0.5-14 |
14 m |
16 m |
500 Kg |
2809*1530 mm |
3-4 m/min |
|
SJY0.3-16 |
16 m |
18 m |
300 Kg |
2809*1600 mm |
3-4 m/min |
|
SJY0.3-18 |
18 m |
20 m |
300 Kg |
3068*1600 mm |
3-4 m/min |
|
capacity |
lifting height |
scissor quantity |
wheel |
table size |
|
150kg |
0.72 |
1 |
nylon wheel |
450*700 |
|
150kg |
1.22 |
2 |
nylon wheel |
450*700 |
|
300kg |
0.9 |
1 |
nylon wheel |
500*815 |
|
300kg |
1.3 |
2 |
nylon wheel |
500*815 |
|
350kg |
1.3 |
2 |
nylon wheel |
500*815 |
|
350kg |
1.5 |
2 |
nylon wheel |
500*815 |

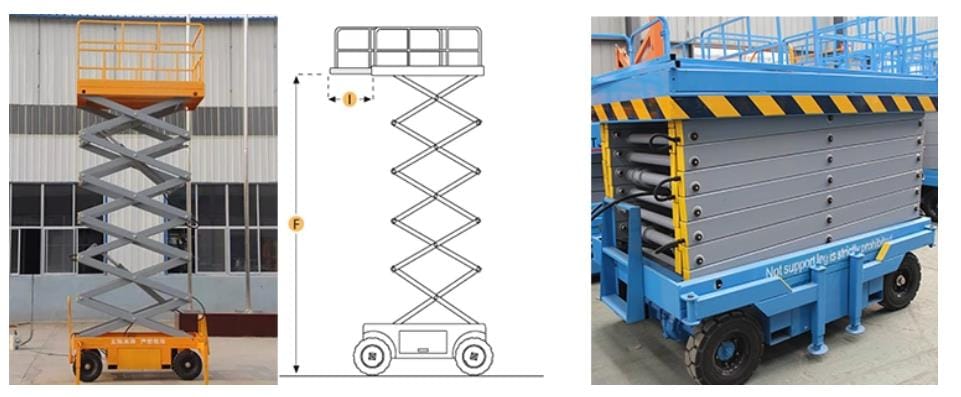

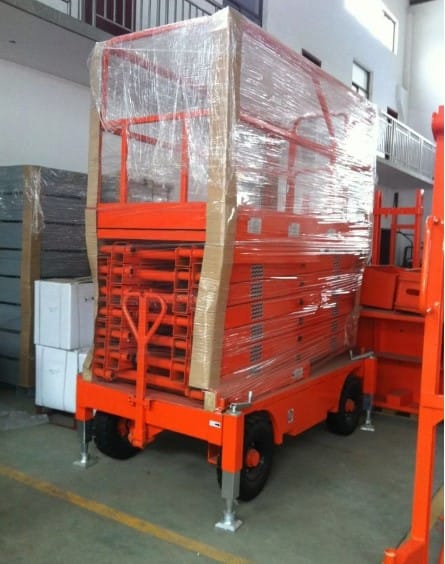

500kg mobile scissor lift for sales
Rated Loading Capacity: 300kg 500kg 1 ton 2 ton
Lifting height: 3m 6m 8m 10m 12m 14m 16m 18m
Power: 2.2kw
Power source: single-phase three-phase ac / battery / diesel
Electric Scissor Lift is a kind of hydraulic mobile scissor lift,and mainly used in airport, station, supermarket ,stadium, residence community and workshop.
- Made of high intensity manganese steel tubes, never deformed
- Antiskid upper platform plate and 1000mm height guardrail to guarantee opertor's safety
- Anti explosion valve to prevent upper platform from dropping suddenly when any emergency
- Spillover valve can prevent high pressure when the machine moves up to adjust work pressure
- Special made casting steel hinge ear, well wearable , with a long serve life
- High strength steel structures smoothly lift up and drop down, easily operated, few faults
- Four support leg to provide more steady support
- It has a remote control button above the platform, standing on the platform also can make it up and down

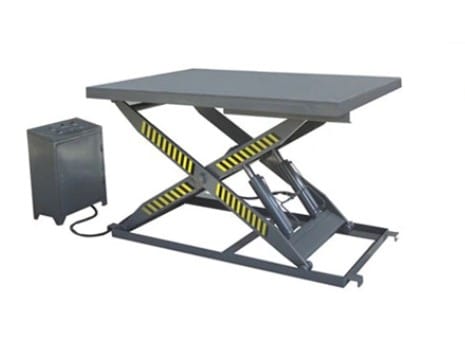

500kg stationary scissor lift for sale
Rated Loading Capacity: 500~3000KG
Table Size: 1300x800
Lowered Height: 190mm
Max. Lifting Height: 500-2000m

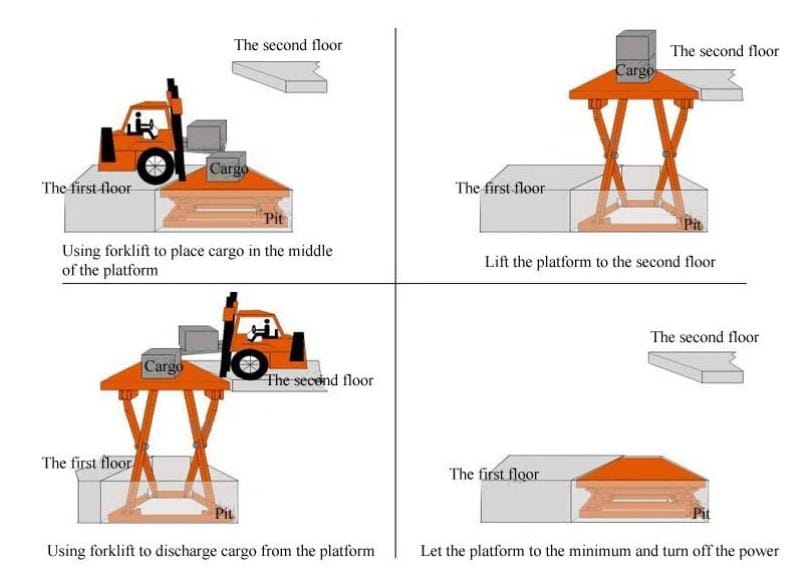

500kg stationery scissor lift is generally used for lifting cargo and people to working place, loading and unloading goods from ground to underground or other floors. The load capacity is various depending on the different working height from 100kg to 5 tons. 500kg stationary scissor lift height can be 1m to 12m, and table size can be custom-made. The Control system and working voltage can be changed to client's requirements, such 220V, 380V, 415V,etc.
|
Model |
capacity |
Min.height |
Lifting range |
Platform size |
Motor power |
Self weight |
|
SJG0.3-3 |
300 |
650 |
3000 |
200*1200 |
1.1 |
780 |
|
SJG0.5-5 |
500 |
850 |
5000 |
2000*1000 |
2.2 |
1200 |
|
SJG1-3.3 |
1000 |
840 |
3300 |
1900*1500 |
3 |
1300 |
|
SJG1-4.3 |
1000 |
860 |
4300 |
2500*2000 |
3 |
2500 |
|
SJG1-6 |
1000 |
1230 |
6000 |
2200*1500 |
2.2 |
2500 |
|
SJG2-3.5 |
2000 |
1000 |
3500 |
2200*1500 |
3 |
1800 |
|
SJG3-4.5 |
3000 |
1060 |
4500 |
2200*1800 |
4 |
2200 |
|
SJG1.5-3 |
1500 |
820 |
3000 |
1800*1200 |
2.2 |
1480 |
|
SJG2-4.8 |
2000 |
980 |
4800 |
2000*2000 |
4 |
2200 |
|
SJG2-6 |
2000 |
1150 |
6000 |
2200*2000 |
5 |
2800 |
|
SJG1-8 |
1000 |
1320 |
8000 |
2200*1800 |
4 |
3000 |
|
SJG2-9 |
2000 |
1400 |
9000 |
2500*1800 |
7.5 |
3800 |
|
SJG2-11 |
2000 |
1900 |
11000 |
2500*1500 |
7.5 |
4100 |
|
SJG3-10 |
3000 |
2100 |
10000 |
2500*1500 |
7.5 |
4300 |
DFLIFT 500kg scissor lift standard Safety Features
DFLIFT 500kg scissor lift Meet EN norm and ANSI/ASME safety standards.
DFLIFT 500kg scissor lift models can be used in above-floor or in-floor pit applications.
Upper platform lifted with safety bar preventing descent on contact with obstructions .
Low-tension (24 v) control box with up-down buttons .
Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
