6m scissor lift
6m scissor lift is special equipment for aerial working. Its scissor type mechanical structure makes the lifting platform have higher stability after lifting, wide working platform and higher bearing capacity, making the working range of high altitude larger and suitable for many people to work at the same time. 6m scissor lift makes working at height more efficient and safer.

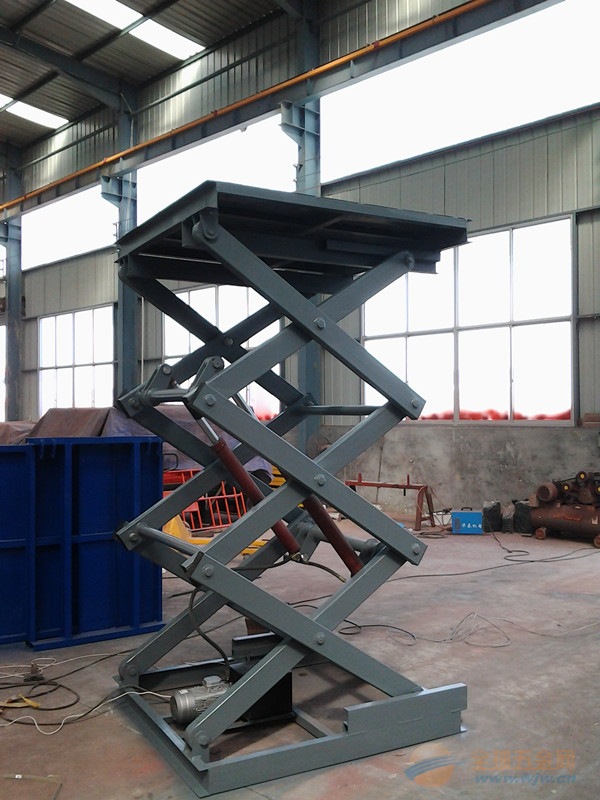

6m Stationary scissor lift
Rated load: 0.2t-20t
Lifting height: 1-3m
Platform size: customize
Voltage: three-phase alternating current
Stationary 6m scissor lift is also known as the scissors for goods ladder, fixed lifting platform. The stationary 6m scissor lift uses hydraulic power, shear structure, is commonly used in low-rise buildings goods transport equipment; Special hydraulic lifting platform for transporting goods between building floors; The stationary 6m scissor lift widely used in workshop, warehouse and all kinds of work shelving goods up and down transport garage floor car lift; The stationary 6m scissor lift is an economical and practical alternative elevator between low floors and an ideal equipment for cargo transportation.
|
Model |
Capacity(kgs) |
Min height(mm) |
Lifting range (mm) |
Platform size (mm) |
Motor power (kw) |
Weight(kgs) |
|
SJG0.3-3 |
300 |
650 |
3000 |
200*1200 |
1.1 |
780 |
|
SJG0.5-5 |
500 |
850 |
5000 |
2000*1000 |
2.2 |
1200 |
|
SJG1-3.3 |
1000 |
840 |
3300 |
1900*1500 |
3 |
1300 |
|
SJG1-4.3 |
1000 |
860 |
4300 |
2500*2000 |
3 |
2500 |
|
SJG1-6 |
1000 |
1230 |
6000 |
2200*1500 |
2.2 |
2500 |
|
SJG2-3.5 |
2000 |
1000 |
3500 |
2200*1500 |
3 |
1800 |
|
SJG3-4.5 |
3000 |
1060 |
4500 |
2200*1800 |
4 |
2200 |
|
SJG1.5-3 |
1500 |
820 |
3000 |
1800*1200 |
2.2 |
1480 |
|
SJG2-4.8 |
2000 |
980 |
4800 |
2000*2000 |
4 |
2200 |
|
SJG2-6 |
2000 |
1150 |
6000 |
2200*2000 |
5 |
2800 |
|
SJG1-8 |
1000 |
1320 |
8000 |
2200*1800 |
4 |
3000 |
|
SJG2-9 |
2000 |
1400 |
9000 |
2500*1800 |
7.5 |
3800 |
|
SJG2-11 |
2000 |
1900 |
11000 |
2500*1500 |
7.5 |
4100 |
|
SJG3-10 |
3000 |
2100 |
10000 |
2500*1500 |
7.5 |
4300 |

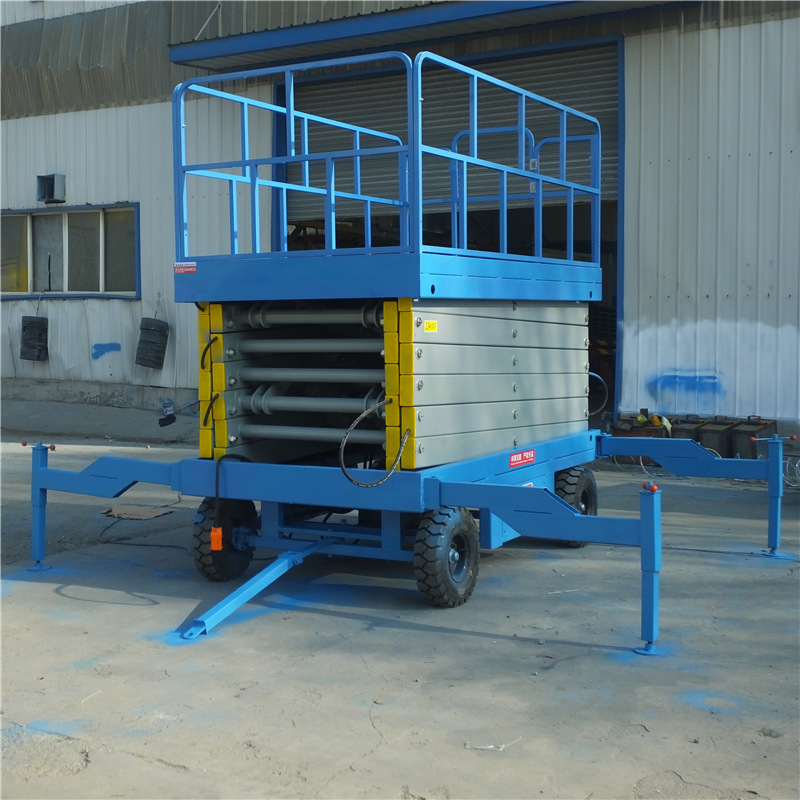

6m moveable scissor lift
Rated load: 0.2t-20t
Lifting height: 1-3m
Platform size: customize
Voltage: three-phase alternating current
6m scissor lift, the lifting mechanism is made of high strength manganese steel. 6m scissor lift is equipped with safety protection device to prevent overload of lifting platform. It is equipped with safety protection valve to prevent hydraulic pipeline from breaking. 6m scissor lift equipped with emergency descending device in case of power failure. The product is suitable for various industries of high-altitude equipment installation, maintenance and other mobile high-altitude work. According to different requirements can choose different dynamic form (such as: three-phase ac power supply, single-phase ac power supply, dc power and diesel power, etc.), and with manual hydraulic equipment, can be in a power outage or lifting work as usual, no power supply and can add adjustable platform, can extend to the desired location on the length of the platform, so as to improve the work efficiency. 6m scissor lift is ideal equipment for modern tall buildings and equipment, and a must for safe and civilized production at high altitude.
|
Type |
Platform size（mm） |
Capacity（kg） |
Lifting height（m） |
Overall size（mm） |
Weight （kg） |
|
DFSJY0.5-6 |
2100*830 |
500 |
6 |
2250*950*1200 |
880 |
|
DFSJY 0.5-7 |
2100*830 |
500 |
6.8 |
2250*950*1280 |
970 |
|
DFSJY 0.5-8 |
2100*930 |
500 |
8 |
2250*1060*1380 |
1050 |
|
DFSJY 0.5-9 |
2100*930 |
500 |
9 |
2250*1060*1500 |
1165 |
|
DFSJY 0.5-10 |
2100*1230 |
500 |
10 |
2250*1350*1530 |
1360 |
|
DFSJY 0.5-11 |
2100*1230 |
500 |
11 |
2250*1350*1650 |
1400 |
|
DFSJY 0.5-12 |
2550*1530 |
500 |
12 |
2796*1670*1750 |
2260 |
|
DFSJY 0.5-14 |
2812*1530 |
500 |
14 |
3067*1730*1810 |
2486 |
|
DFSJY 0.3-16 |
2812*1600 |
300 |
16 |
3067*1810*2080 |
3063 |
|
DFSJY 0.3-18 |
3070*1600 |
300 |
18 |
3321*1810*2080 |
3900 |
|
DFSJY 1.0-4 |
2100*1200 |
1000 |
4 |
2250*1350*1180 |
1250 |
|
DFSJY 1.0-6 |
2100*1200 |
1000 |
6 |
2250*1350*1300 |
1400 |
|
DFSJY 1.0-8 |
2100*1200 |
1000 |
8 |
2250*1350*1420 |
1585 |
|
DFSJY 1.0-10 |
2100*1200 |
1000 |
10 |
2250*1350*1530 |
1700 |
|
DFSJY 1.0-12 |
2550*1530 |
1000 |
12 |
2796*1670*1750 |
2560 |
|
DFSJY 1.0-14 |
2812*1600 |
1000 |
14 |
3067*1810*1900 |
3230 |
|
DFSJY 1.5-6 |
2100*1530 |
1500 |
6 |
2250*1750*1530 |
1780 |
|
DFSJY 1.5-8 |
2100*1530 |
1500 |
8 |
2250*1750*1690 |
2070 |
|
DFSJY 1.5-10 |
2100*1530 |
1500 |
10 |
2250*1750*1850 |
2250 |
|
DFSJY 1.5-12 |
2550*1530 |
1500 |
12 |
2796*1762*1850 |
2900 |
|
DFSJY 1.5-14 |
2816*1600 |
1500 |
14 |
3045*1852*1960 |
3400 |
|
DFSJY 2.0-6 |
2100*1530 |
2000 |
6 |
2250*1750*1530 |
1780 |
|
DFSJY 2.0-8 |
2100*1530 |
2000 |
8 |
2250*1750*1690 |
2070 |
|
DFSJY 2.0-10 |
2100*1530 |
2000 |
10 |
2250*1750*1850 |
2250 |
|
DFSJY 2.0-12 |
2550*1600 |
2000 |
12 |
2796*1852*1954 |
3200 |
|
DFSJY 2.0-14 |
2816*1600 |
2000 |
14 |
3067*1852*2230 |
3900 |
|
DFSJY 03A |
1150*700 |
240 |
3 |
1300*760*1950 |
545 |
|
DFSJY 03 |
1280*700 |
240 |
3 |
1440*760*1830 |
535 |
|
DFSJY 04 |
1280*700 |
240 |
4 |
1440*760*1950 |
590 |
Hydraulic system used in the lift is icing on the cake, we will be deeply aware of the use, the use of the benefits of 6m moveable scissor lift following four aspects:
1, low noise, hydraulic system adopts hydraulic transmission, low noise pollution.
2, the rise and fall is smooth, this is the characteristics of the hydraulic system, because of this, the lifting platform in the operation can give a sense of security.
3, no pollution, hydraulic system adopts "zero emission" operation, no waste, green, low carbon.
4, long service life, because the transmission medium is hydraulic oil, so the hydraulic system wear rate reduced, service life extended.
Conclusion: the application of hydraulic system in the elevator makes the mobile elevator work more excellent, by the customer's trust and support, in the field of high-altitude work has become 'always benchmark', in the sales market is also enduring, practice has proved that the application of hydraulic system meets the needs of the market and people.

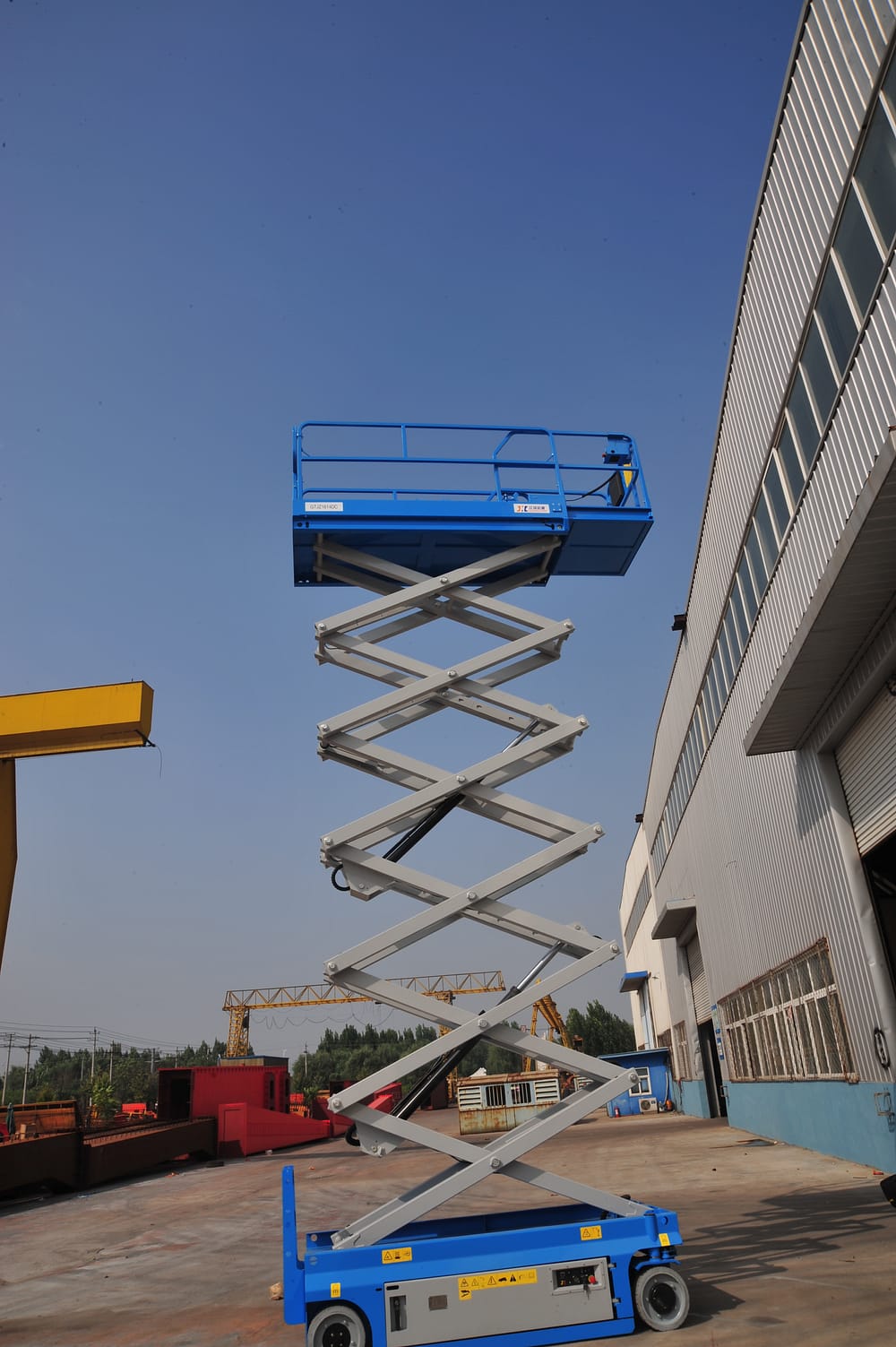

6m self-propelled scissor lift
Capacity: 230-320kg
Lifting height: 6-12m
Driving mode: hydraulic drive
Power supply: Electric power
Travel methods: Self-propelled mobile scissor lift
The main features of self-propelled hydraulic lifting platform are: the use of personnel under the lifting platform can control the mechanical lifting, walking, can control the equipment on the platform to travel to other work places.
6m self-propelled scissor lift has the function of walking and steering drive, without manual traction and external power supply. It is ideal equipment for high altitude operation in modern enterprises with high efficiency and safety.
Composition:
DC electric drive wheel has the function of self-locking, braking separation when the drive wheel works, automatic locking when it does not work. 6m self-propelled scissor lift consists of the following parts:
1, shear fork main structure and telescopic table, and safety fence. Automatic dc driving wheel. Hydraulic system: pump station, cylinder, etc. Dc power supply and charger. Electric control box and operation box.
