Battery scissor lift best supplier from China
Battery scissor lift is widely using in building construction, fixing street lamp and others aerial working project. Because itself has power to supply. So it can move and lifting without power supply. So it is widely used in difficult power supply area. Battery scissor lift is control by electricity, moving also. There are two-control panel, one is under the platform, which install on the surface of the basis, and another one is install on the platform. People can move it by the moving handle, go forward or back which is convenient for working.

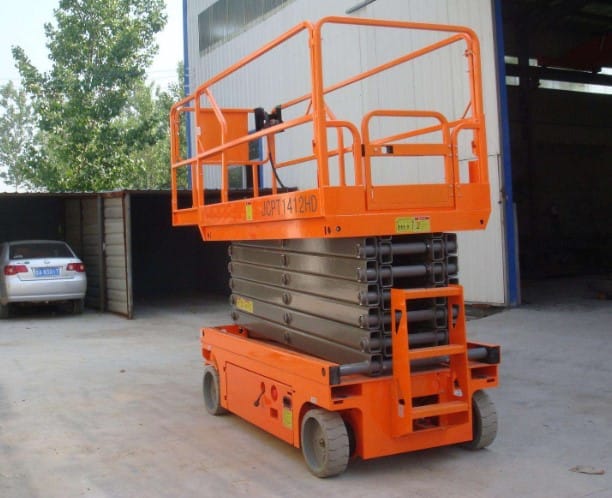

Battery self-propelled scissor lift
Rated Loading Capacity: 320kg
Max. Lifting Height: 14m
Type: GTJZ
Package: Wooden case
Voltage: 220V, 380 V, 440V.
Lift Drive / Actuation: Hydraulic electric
Battery self-propelled scissor lift, travelling speed is controlled by pendent. Battery self-propelled scissor lift own automatic walking function. It can used in different working condition, and do not need external power supply and artificial traction. It is mobile flexible, convenient operation, lift freely, only one people can finish forward, backward, steering, fast and slow walk. Battery self-propelled scissor lift is easily too moved with high working efficiency. The operator can move this type scissor lift while extend and controlled from platform. It is walking; reversing, turning and lifting can be achieve on the platform board, self-movement at the full height. Low noise allows the operation personnel work in a silent environment and the large-angle steering system provides a good maneuverability.
|
Model |
SJYZ06 |
SJYZ08 |
SJYZ10 |
SJYZ12 |
|
Working Height |
8m |
10m |
12m |
14m |
|
Platform Height |
6m |
8m |
10m |
12m |
|
Platform Size |
2.27×1.12m |
2.27×1.12m |
2.27×1.12m |
2.27×1.12m |
|
Lift Capacity |
300kg |
300kg |
300kg |
300kg |
|
Weight |
1850kg |
2250kg |
2500kg |
2800kg |
|
Overall Dimension |
2.48×1.15×2.18m |
2.48×1.15×2.34m |
2.48×1.15×2.48m |
2.48×1.15×2.59m |
|
Lift-Up |
30s |
37s |
45s |
50s |
|
Lift-Down |
30s |
32s |
35s |
38s |
|
Gradeability |
25% |
25% |
25% |
25% |
|
Maximum Tilt |
3° |
3° |
3° |
3° |
|
Battery |
4x6V |
4x6V |
4x6V |
4x6V |

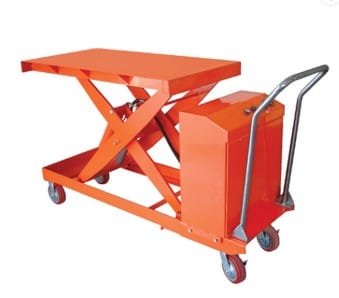

Battery scissor lift table price
Capacity:150-3000KG
Lift Drive / Actuation:Hydraulic
Min. Lifting Height:350mm
Hydraulic:Foot-type hydraulic
Product Type:Mini scissor lift table
Battery scissor lift table operated portable electric scissor lift trolley is ideal for quick lifting and ergonomic material handling. Battery-powered unit allows operators to raise and lower platform with the push of a button. Battery scissor lift table has portable ergonomic elevating cart minimizes workers bending and lifting. So it is convenient to use.
|
Model |
|
PA-150 |
PA-300 |
PA-500 |
|
capacity |
kg |
150 |
300 |
500 |
|
table size |
mm |
700 x 450 |
815 x 500 |
815 x 500 |
|
raised height |
mm |
720 |
900 |
900 |
|
lowered height |
mm |
210 |
280 |
280 |
|
caster size |
mm |
100 |
125 |
125 |
|
net weight |
kg |
40 |
76 |
84 |
DFLIFT advantages：
- Battery scissor lift lifts provide button control lift, easy to operate (ring button, drop button, emergency stop switch, and electricity meter)
- Oil cylinder: high quality with relief valve, enclosed cylinder to prevent oil leakage 3. Battery scissor lift status of use of the machine can be reacted by the self-test and alarm alert.
- Wheel: high quality PU wheel, universal wheel with brake
