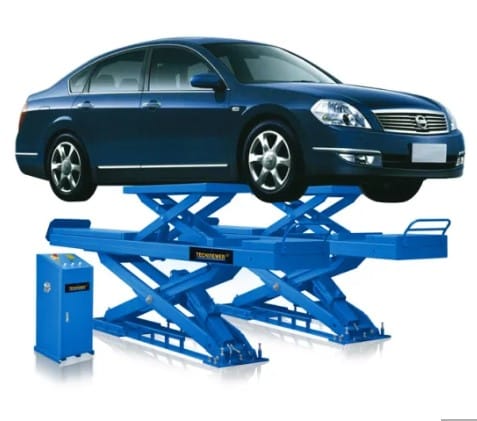

Car scissor lift
Lifting capacity: 7716Lbs/3500kg
Max lifting height: 67"/1700mm
Motor voltage: 220V, 380V or customer-specified
The scissor car lift can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, or to second floor. Custom-made product are made according to detailed request, please tell us load weight, lift height, and platform size, our engineer will design a suitable car lift for you soon. The scissor car lift t is widely used to lift cars from basement or pit to the ground floor. The lower platform are for car parking, and top platform can park car or spread the lawn. It is modern parking solution. We can make proposals and customize the parking lift according to your vehicles, spaces and building structure.
|
Lifting capacity |
7716Lbs/3500kg |
|
Max lifting height |
67″/1700mm |
|
Min height |
13″/340mm |
|
Platform length |
61″/1550mm |
|
Extension length |
9.8″/250mm |
|
Platform width |
22″/550mm |
|
Distance of Platforms |
32″/800mm |
|
Motor voltage |
220V,380V or customer-specified |
|
Frequency |
50Hz or 60Hz |
|
Phase |
1ph or 3ph |
|
Lifting time |
45seconds |
|
total weight |
1100lbs/720kg |
Main feature
1. CE,ROHS certificated.Up to American and Europe standard.
2. AC24V reliable actuators for lifting. efficient and precise.
3. Anti-explosion valve,Overflow valve,Check valve.

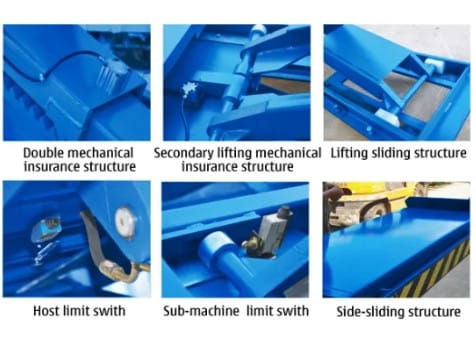

4. Emergency decline.Strong security anti-dropping device.
5. Anti-dropping device: prevent falling of platform
6. Check valve: prevent hydraulic oil backflow
7. Loading test: 125% dynamic load test and 175% static load test
8. Powder spray painting surface,anti-corrosion.OEM logo and painting color.
9. Because of the very simple structure, the scissor car lift is much more easier to operate and maintain.
10. It's famous for its strong structure, stable performance, high load capacity and flexible custom size.
Specifications and Safety:
1.The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of car
- the handrail to guarantee safety of car
- equipped with 4 guide rails to ensure safety and steady.
- the limit switch system ensure lifts stop at accurate position.
- overload protection facility is equipped on, the lift will not work when goods is overloaded.
- Electric control system adopt elevator system from Japan Mitsubishi ensure safety
- guarantee: 12 months, we supply spare parts free and supply technical supporting all the time.
