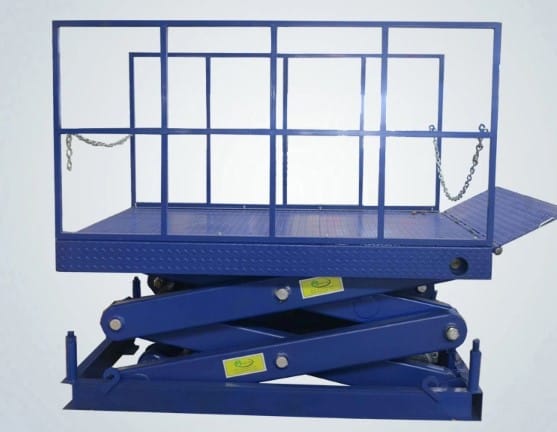

Cargo scissor lift dealer:
Rated Loading Capacity: 500kg-40ton
Max. Lifting Height: 6m
Type: Hydraulic
Power supply: three-phase alternating current
Table size: specified by customer
Cargo scissor lift is generally used for lifting cargo and people to working place. Loading and unloading goods from ground to underground or to other floors. Cargo scissor lift is characterized by great loading capacity. Hydraulic lift system Steady ascending and descending. Cargo scissor lift's system can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, to second floor, or to third floor. Operation is easy, and the lifts run very smoothly. There are also explosion-proof lock valve to avoid a sudden drop if emergency occurs. The limit switch system helps the lift to stop at accurate position. The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of cargo. Emergency button is available on each control box, when emergency occurs, the immediate stop can be realized. Control system adopt elevator control system, very convenient and safety.
|
Model |
Table size(mm) |
Loading capacity(T) |
Platform height(m) |
Size (L*W*H) (mm) |
|
FSL1—1.2 |
2800×2500 |
1 |
1.2 |
2800×2500×250 |
|
FSL3—2 |
3000×2600 |
3 |
2 |
3000×2600×450 |
|
FSL1.5—10 |
4000×3000 |
1.5 |
10 |
3000×3000×1600 |
|
FSL2—7 |
3000×2500 |
2 |
7 |
3000×2500×880 |
|
FSL2.2—1.8 |
3800×2500 |
2.2 |
1.8 |
3800×2500×280 |
|
FSL5—2.5 |
4000×3200 |
5 |
2.5 |
4000×3200×650 |
|
FSL6—6.6 |
4500×3000 |
6 |
6.6 |
4500×3000×900 |
|
FSL4.5—3.2 |
5000×2400 |
4.5 |
3.2 |
5000×2400×700 |
|
FSL20—4.5 |
6500×5500 |
20 |
4.5 |
6500*5500×1500 |
|
FSL15—5 |
6000×4500 |
15 |
5 |
6000×4500×1200 |
|
FSL7—6 |
6000×2800 |
7 |
6 |
6000×2800×850 |
|
FSL8—7.5 |
6000×3000 |
8 |
7.5 |
6000×3000×1200 |
|
FSL3.5—9 |
6500×3500 |
3.5 |
9 |
6500×3500×900 |
|
FSL2.5—12 |
8000×3000 |
2.5 |
12 |
8000×3000×850 |

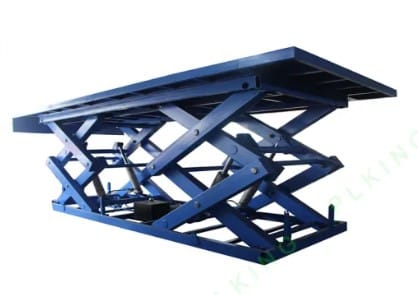

Cargo double scissor lift specifications
Rated Loading Capacity: 500kg-40ton
Max. Lifting Height: 6m
Type: Hydraulic
Power supply: three-phase alternating current
Table size: specified by customer
DFLIFT Product advantages:
Installed in the pit, do not occupy space.
When lifting up or down, and stop three buttons control the lift.
Great load capacity, 125% capacity load test, anti-skid platform.
Sensitive overload protection devices locking device for failing protection.
- Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe protection.
- Spillover valves: it can prevent high pressure when the machine moves up. Adjust the pressure.
- Emergency decline valve: it can go down when you meet an emergency.
- Safety bar: when platform descending, if it touches anything, it will be stop, so it can protect goods or persons.
