Hydraulic scissor lift manufacturer
Hydraulic scissor lift is drive by hydraulic cylinder. This power unit designed for larger scale hydraulic operations in an industrial setting such as large scissor lifts commonly found in automotive shops and other various industrial applications and can use to power punch presses, presses, tool and die equipment, and much more. Consisting of a highly efficient gear pump, AC motor, multi-functional manifold, valves, tank, etc. The lowering movement is activated by the solenoid valve and the speed is controlled be an adjustable needle valve. When the lift rises to a high position, but the power supply is cut, the lowering function is controlled by the manual over ride function.

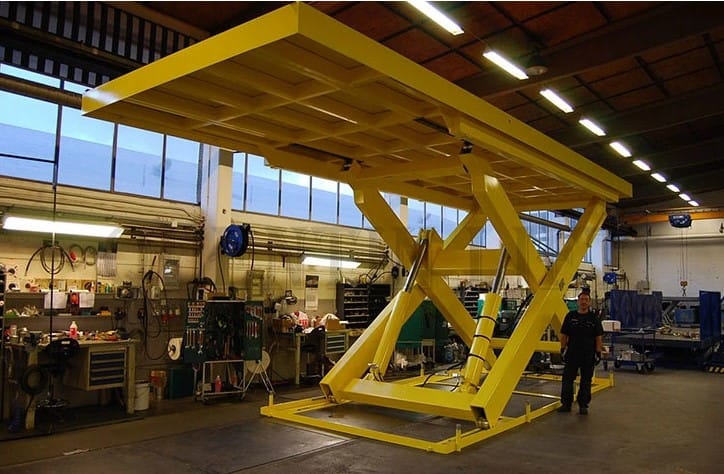

Stationary hydraulic scissor lift for sale
Rated Loading Capacity:0.3t-40t
Max. Lifting Height: 6000mm
Voltage: DC 12V/24V AC 220V/380V
Usage: Lifting cargo
Stationary hydraulic cargo scissor lift is use to convey the goods from one working level to another. Multi point control--The control panels are available at the designated floors and on the lift platforms. Loading capacity, platform size and lifting height can be made according to your actual needs. Stationary hydraulic cargo scissor lift can be installed in the pit, do not occupy space. Or installed on the ground as your demand. When lifting up or down, there are "up" and "down" "stop “buttons control the lift. So it is easy to control. Sensitive overload protection devices locking device for failing protection. The appearance of stationary hydraulic cargo scissor lift has brought great convenience to our life.
|
Model |
Capacity(kgs) |
Min height(mm) |
Lifting range (mm) |
Platform size (mm) |
Motor power (kw) |
Weight(kgs) |
|
SJG0.3-3 |
300 |
650 |
3000 |
200*1200 |
1.1 |
780 |
|
SJG0.5-5 |
500 |
850 |
5000 |
2000*1000 |
2.2 |
1200 |
|
SJG1-3.3 |
1000 |
840 |
3300 |
1900*1500 |
3 |
1300 |
|
SJG1-4.3 |
1000 |
860 |
4300 |
2500*2000 |
3 |
2500 |
|
SJG1-6 |
1000 |
1230 |
6000 |
2200*1500 |
2.2 |
2500 |
|
SJG2-3.5 |
2000 |
1000 |
3500 |
2200*1500 |
3 |
1800 |
|
SJG3-4.5 |
3000 |
1060 |
4500 |
2200*1800 |
4 |
2200 |
|
SJG1.5-3 |
1500 |
820 |
3000 |
1800*1200 |
2.2 |
1480 |
|
SJG2-4.8 |
2000 |
980 |
4800 |
2000*2000 |
4 |
2200 |
|
SJG2-6 |
2000 |
1150 |
6000 |
2200*2000 |
5 |
2800 |
|
SJG1-8 |
1000 |
1320 |
8000 |
2200*1800 |
4 |
3000 |
|
SJG2-9 |
2000 |
1400 |
9000 |
2500*1800 |
7.5 |
3800 |
|
SJG2-11 |
2000 |
1900 |
11000 |
2500*1500 |
7.5 |
4100 |
|
SJG3-10 |
3000 |
2100 |
10000 |
2500*1500 |
7.5 |
4300 |
Mobile hydraulic scissor lift with certificate
Rated Loading Capacity: 320kg 480kg
Min. Lifting Height: 800mm
Max. Lifting Height：1600mm
Main Material:High duty steel
After-sales Service Provided:Field installation, commissioning and training
Platform:Anti-skid Checkered Plate
Voltage:110V,220V,380V, customized
Mobile hydraulic scissor lift is widely used for high-altitude equipment installation, maintenance, decoration and so on, also suitable for multi-layer workshops, warehouses, production lines, transfer of goods of height differences and truck loading and unloading, etc. Mobile hydraulic scissor lift oil cylinder is equipped with unloading flow-limiting valves to ensure the steady falling when lifted to the highest. Electric switch or remote control lift switch (optional) for people on both the ground and platform to operate. Equipped with manual oil pump (optional) to ensure operation without power supply.
|
terms |
SJZ-6 |
SJZ-8 |
SJZ-10 |
SJZ-12 |
SJZ-14 |
|
Capacity |
230kg |
230kg |
320kg |
320kg |
200kg |
|
capacity-extension deck |
113kg |
113kg |
113kg |
113kg |
113kg |
|
Max working height |
8m |
10m |
12m |
14m |
16m |
|
Max platform height |
6m |
8m |
10m |
12m |
14m |
|
Overall dimension |
1.86*0.76*1.85m |
2.42*0.83*2.07m |
2.42*1.17*1.93m |
2.42*1.17*2.06m |
2.79*1.27*2.06m |
|
Platform size |
1.67*0.74m |
2.27*0.83m |
2.27*1.14m |
2.27*1.14m |
2.64*1.14m |
|
Extension size |
900mm |
900mm |
900mm |
900mm |
900mm |
|
Wheelbase |
1400mm |
1870mm |
1870mm |
1870mm |
2240mm |
|
Min turning radius |
1600mm |
2250mm |
2230mm |
2230mm |
2250mm |
|
lifting/driving motor |
24v/3.0kw |
24v/3.3kw |
24v/3.3kw |
24v/4.5kw |
24v/4.5kw |
|
Driving speed (fold) |
3.5km/h |
3.5km/h |
3.5km/h |
3.5km/h |
3.5km/h |
|
Driving speed (rising) |
0.8km/h |
0.8km/h |
0.8km/h |
0.8km/h |
0.8km/h |
|
Battery |
4*6v/225Ah |
4*6v/225Ah |
4*6v/240Ah |
4*6v/260Ah |
4*12v/300Ah |
|
Charger |
24v/25A/Customized |
24v/25A/Customized |
24v/25A/Customized |
24v/25A/Customized |
24v/25A/Customized |
|
Grade ablity |
25% |
25% |
25% |
25% |
25% |
|
Tires |
non-marking tires |
non-marking tires |
non-marking tires |
non-marking tires |
non-marking tires |
|
Weight |
1260kg |
2100kg |
2480kg |
3100kg |
3180kg |

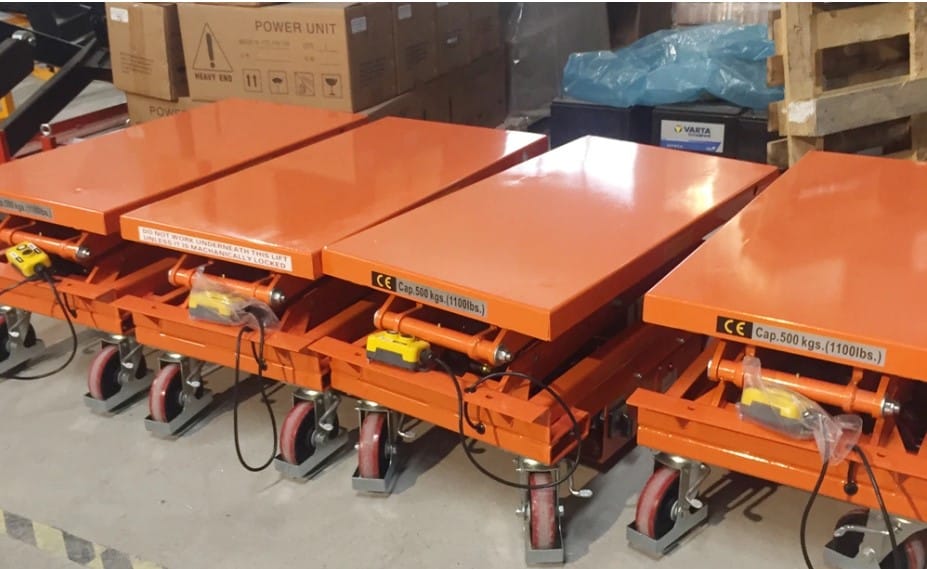

Hydraulic scissor lift table factory
D
Rated Loading Capacity: 150kg 300kg 500kg 1000kg 1500kg 2000kg,330 lbs. 660 lbs. 1100 lbs. 2200 lbs. 3300 lbs. 4400 lbs.
Max table height: 1500/2000 mm
After-sales Service Provided: Online support, Engineers available to service machinery overseas
Certification: CE ISO
Hydraulic scissor lift table, the best value in lift tables with unparalleled features! Reduces awkward bending and lifting since the workload is always at the correct level. The possibility of back injuries is also reduced and productivity is increased. The DFLIST is a superior scissors lift table currently offered in the 2,000 - 6,000 lb capacity range with a vertical travel range from 24" to 60" and can satisfy most applications. The DFLIST hydraulic Scissor Lift Table has a vertical travel range from 24" to 60" and can satisfy most applications. The DFLIST hydraulic Scissor Lift Table Specifications coupled with its unique Features raise DFLIST hydraulic Scissor Lift Table above any other.
|
Model |
HW-150 |
HW-300 |
HW-500 |
HW-750 |
HW-300D |
|
Name |
Hydraulic Scissor lift table |
Double hydraulic Scissor lift table |
|||
|
load-bearing(kg) |
150 |
300 |
500 |
750 |
300 |
|
Overall dimensions(mm) |
900*450*900 |
1050*520*900 |
1120*520*900 |
1120*520*900 |
1050*520*900 |
|
Platform size(mm) |
708*450 |
820*520 |
820*520 |
820*520 |
820*520 |
|
Min height(mm) |
225 |
240 |
260 |
280 |
360 |
|
Max height(mm) |
700 |
750 |
780 |
780 |
1220 |
|
Wheel size(mm) |
Φ100*w30 |
||||
|
package size(mm) |
810*490*250 |
920*590*250 |
920*560*300 |
920*590*300 |
920*570*380 |
|
Weight(kg) |
49 |
66 |
75 |
75 |
103 |
If you need to consult, please leave the following information：
- Voltage (V)
- Lifting capacity (KG)
- Lifting height (distance from hook center to ground)(m)
- Table size (L*W)
- Max machine size (mm)
- Working environment
Why choose us:
Pre-Sales Service
* Technical supports and suggestions before you order a machine according to your work place. * All the machines will be full tested before shipments * View our Factory.
After-Sales Service
* Operation manual and training how to use the machine. * Engineers available to service machinery overseas. * 12 months warranty period and we will provide the consumable parts at cost price after the warranty period * 24-hour technical support by emails, calling or videos
