In floor (ground) scissor lift for sale：
Rated Loading Capacity: 500kg-40ton
Max. Lifting Height: 6m
Type:Hydraulic
Power supply: three-phase alternating current
Table size: specified by customer

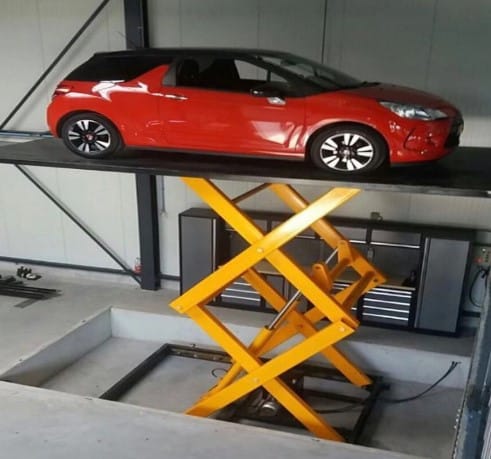

In floor scissor lift dependably in a variety of demanding storage and logistics applications. Loading unloading goods in and out warehouses, lifting up and down between floors freely, which help customers save much labor and time. In floor scissor lift is used to convey the material or goods from ground to upper floors, it can installed in the pit, do not occupy space. In addition, for this scissor lift platform, many customers use it in production line or docks, so it can be fixed directly on ground floor.
|
Model |
Lift height (m) |
Stops |
Min height (mm) |
Load capacity (kg) |
Table size (L*W) (mm) |
Power output (kw) |
|
|
DFG0.3-4.5 |
4.5 |
2 |
150 |
300 |
1000*800 |
1.5 |
|
|
DFG0.5-4.5 |
500 |
1500*1000 |
1.5 |
||||
|
DFG1.0-4.5 |
1000 |
1500*1500 |
2.2 |
||||
|
DFG2.0-4.5 |
2000 |
2000*1000 |
2.2 |
||||
|
DFG3.0-4.5 |
160 |
3000 |
2000*1200 |
3.0 |
|||
|
DFG3.0-4.5( car lift) |
5000*3000 |
4.0 |
|||||
|
DFG0.3-7.5 |
7.5 |
3 |
150 |
300 |
1000*1000 |
2.2 |
|
|
DFG0.5-7.5 |
500 |
1200*1200 |
2.2 |
||||
|
DFG1.0-7.5 |
1000 |
1800*1400 |
3.0 |
||||
|
DFG2.0-7.5 |
2000 |
2000*1500 |
3.0 |
||||
|
DFG3.0-7.5 |
160 |
3000 |
2000*1600 |
4.0 |
|||
|
DFG1.0-10.5 |
10.5 |
3-4 |
150 |
1000 |
1800*1400 |
3.0 |
|
|
DFG1.0-14 |
14 |
4-5 |
1800*1500 |
3.0 |
Characteristics
- The adjustable position of turning disc and the side sliding plate is special configuration for four-wheel positioning
- All movable joints are equipped with self-lubricating bearing, and the service life can be prolonged by scheduled maintenance.
- Imported Oil Seal, valve and important hydraulic parts oil pipe explosion protective device.
- Electric leakage protection overload protection
- Shot blasting and high temperature baking powder coated surface finish self-lubricated bushings and bearings
- Mechanical safety, double Hydraulic System pneumatic safety lock release system
- Stable Hydraulic Balance System
- Optional second-level platform extension and infra-red electronic leveling sensor
- 24V safety control circuit. Easy operation the electric control cabinet.
- The mechanical lock is closed automatically when it goes up and pneumatically opened when it goes down, which is safe and reliable.
