Indoor scissor lift dealer

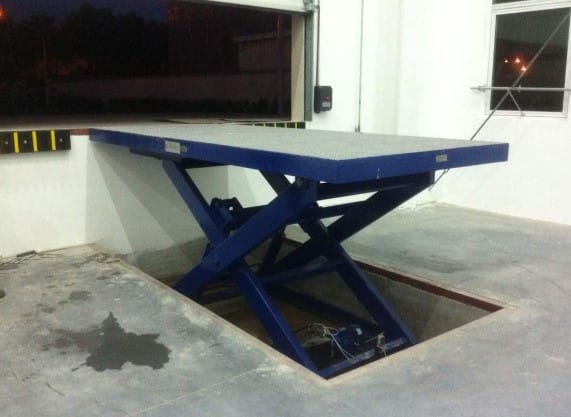

Indoor stationary scissor lift specifications:
Rated Loading Capacity: 500kg-40ton
Max. Lifting Height: 6m
Type:Electric Hydraulic
Power supply: three-phase alternating current
Table size: specified by customer
Indoor scissor lift has humanized control box design, it is very-operation, which is suitable used for aerial installation maintenance of the working sites, such as hotels, grand hall, sport stadium, large factory, workshops, warehouse. We can provide the high quality stationary indoor scissor lift and mobile indoor scissor lift with best price.
|
Max Platform Height |
2m |
2.5m |
3m |
3.5m |
4m |
|
Lift capacity |
3000kg-10,000kg |
||||
|
Speed |
70mm/s |
||||
|
Max platform size |
3000*6000mm |
||||
|
Installation space(Pit size) |
(Platform Width+300mm)*(Depth+60mm) |
||||
|
Closed height |
550mm to 800mm |
||||
|
Access direction |
180° through type |
||||
|
Control ways |
Platform control, main control box |
||||
|
Surface finishing |
Powder coating |
||||
|
Color |
Available in Blue, yellow, red, dark color |
||||
|
Package |
One 20ft container |
||||
|
Installation type |
Pit mounted |
||||
|
Working pressure |
≤13Mpa |
||||
|
Drive mode |
Hydraulic cylinder |
||||
|
Control mode |
PLC control |
||||
|
Control voltage |
24V DC |
||||
|
Voltage |
three-phase alternating current |
||||
|
Foundation requirement |
1. Concrete thickness≥300mm |
||||
|
2. Concrete strength≥C20 (200Mpa |
|||||

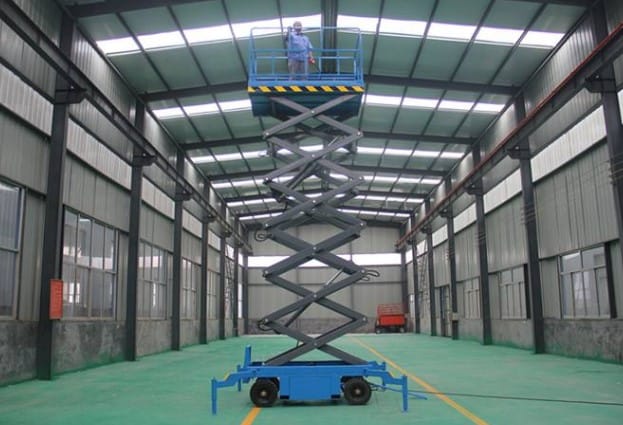

Indoor mobile scissor lift
Rated Loading Capacity: 320kg 480kg
Min. Lifting Height: 800mm
Max. Lifting Height：16000mm
Main Material:High duty steel
After-sales Service Provided:Field installation, commissioning and training
Platform:Anti-skid Checkered Plate
Voltage:110V,220V, 380V, customized
Indoor scissor lift platform
Pulling device scissor lifting aerial platform, hydraulic indoor lift:
(1)Hydraulic self-propelled scissor lift platform use hydraulic lifting system, has automatic walking function, can be work in different condition, do not need external power supply, do not need artificial traction.
(2)Mobile flexible, convenient to operate, lift freely, only one people can finish forward, backward, steering, fast and slow walk.
(3)Especially suitable for stations, docks and airports, stadiums, large enterprise etc. wider range needed aloft work occasion and now it is the most ideal aloft work equipment.
(4)Scissor type body structure, platform can be made to telescopic type, also can add alarm system.
|
Type |
Platform size（mm） |
Capacity（kg） |
Lifting height（m） |
Overall size（mm） |
Weight （kg） |
|
DFSJYZ0.5-6 |
2100*830 |
500 |
6 |
2250*950*1200 |
880 |
|
DFSJYZ 0.5-7 |
2100*830 |
500 |
6.8 |
2250*950*1280 |
970 |
|
DFSJYZ 0.5-8 |
2100*930 |
500 |
8 |
2250*1060*1380 |
1050 |
|
DFSJYZ 0.5-9 |
2100*930 |
500 |
9 |
2250*1060*1500 |
1165 |
|
DFSJYZ 0.5-10 |
2100*1230 |
500 |
10 |
2250*1350*1530 |
1360 |
|
DFSJYZ 0.5-11 |
2100*1230 |
500 |
11 |
2250*1350*1650 |
1400 |
|
DFSJYZ 0.5-12 |
2550*1530 |
500 |
12 |
2796*1670*1750 |
2260 |
|
DFSJYZ 0.5-14 |
2812*1530 |
500 |
14 |
3067*1730*1810 |
2486 |
|
DFSJYZ 0.3-16 |
2812*1600 |
300 |
16 |
3067*1810*2080 |
3063 |
|
DFSJYZ 0.3-18 |
3070*1600 |
300 |
18 |
3321*1810*2080 |
3900 |
|
DFSJYZ 1.0-4 |
2100*1200 |
1000 |
4 |
2250*1350*1180 |
1250 |
|
DFSJYZ 1.0-6 |
2100*1200 |
1000 |
6 |
2250*1350*1300 |
1400 |
|
DFSJYZ 1.0-8 |
2100*1200 |
1000 |
8 |
2250*1350*1420 |
1585 |
|
DFSJYZ 1.0-10 |
2100*1200 |
1000 |
10 |
2250*1350*1530 |
1700 |
|
DFSJYZ 1.0-12 |
2550*1530 |
1000 |
12 |
2796*1670*1750 |
2560 |
|
DFSJYZ 1.0-14 |
2812*1600 |
1000 |
14 |
3067*1810*1900 |
3230 |
|
DFSJYZ 1.5-6 |
2100*1530 |
1500 |
6 |
2250*1750*1530 |
1780 |
|
DFSJYZ 1.5-8 |
2100*1530 |
1500 |
8 |
2250*1750*1690 |
2070 |
|
DFSJYZ 1.5-10 |
2100*1530 |
1500 |
10 |
2250*1750*1850 |
2250 |
|
DFSJYZ 1.5-12 |
2550*1530 |
1500 |
12 |
2796*1762*1850 |
2900 |
|
DFSJYZ 1.5-14 |
2816*1600 |
1500 |
14 |
3045*1852*1960 |
3400 |
|
DFSJYZ 2.0-6 |
2100*1530 |
2000 |
6 |
2250*1750*1530 |
1780 |
|
DFSJYZ 2.0-8 |
2100*1530 |
2000 |
8 |
2250*1750*1690 |
2070 |
|
DFSJYZ 2.0-10 |
2100*1530 |
2000 |
10 |
2250*1750*1850 |
2250 |
|
DFSJYZ 2.0-12 |
2550*1600 |
2000 |
12 |
2796*1852*1954 |
3200 |
|
DFSJYZ 2.0-14 |
2816*1600 |
2000 |
14 |
3067*1852*2230 |
3900 |
|
DFSJYZ 03A |
1150*700 |
240 |
3 |
1300*760*1950 |
545 |
|
DFSJYZ 03 |
1280*700 |
240 |
3 |
1440*760*1830 |
535 |
|
DFSJYZ 04 |
1280*700 |
240 |
4 |
1440*760*1950 |
590 |
DFLIFTS is one of the best China indoor scissor lift platform manufacturer for all your needs of best cheap, high-quality and low price indoor scissor lift platform products, please feel free to contact us.
