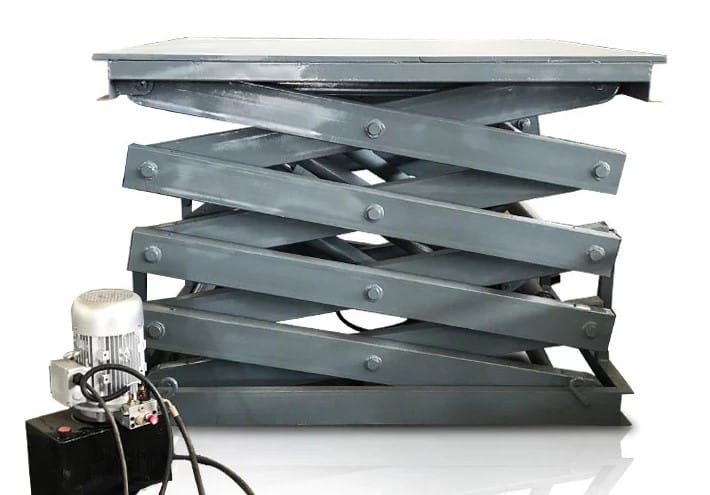

Industrial scissor lift manufacturer
Rated Loading Capacity: 500kg-40ton
Max. Lifting Height: 6m
Type:Hydraulic
Power supply: three-phase alternating current
Table size: specified by customer
Industrial scissor lift widely used in site, workshop, warehouse, station, hotel, airport, wharf, gas station, stadium, elevated pipeline and other high-altitude equipment installation, maintenance and cleaning, can also be used for lifting equipment maintenance, field electric equipment maintenance, steel structure plant maintenance. Industrial scissor lift is used for transfer cargo between different floors. Self-height is about 120-300mm. This platform can install on the ground directly or make one pit. Hydraulic drive, steady working and simple operation. Industrial scissor lift provides fast, efficient, convenient and safe access to or from mezzanines, balconies, basements, and between levels in multiple story buildings. Industrial scissor lift can be installed for through-floor, interior or exterior applications. The principle components of the machine include guide columns, carriage and a mechanical or hydraulic actuating mechanism.
|
Max Platform Height |
2m |
2.5m |
3m |
3.5m |
4m |
|
Lift capacity |
3000kg-10,000kg |
||||
|
Speed |
70mm/s |
||||
|
Max platform size |
3000*6000mm |
||||
|
Installation space(Pit size) |
(Platform Width+300mm)*(Depth+60mm) |
||||
|
Closed height |
550mm to 800mm |
||||
|
Access direction |
180° through type |
||||
|
Control ways |
Platform control, main control box |
||||
|
Surface finishing |
Powder coating |
||||
|
Color |
Available in Blue, yellow, red, dark color |
||||
|
Package |
One 20ft container |
||||
|
Installation type |
Pit mounted |
||||
|
Working pressure |
≤13Mpa |
||||
|
Drive mode |
Hydraulic cylinder |
||||
|
Control mode |
PLC control |
||||
|
Control voltage |
24V DC |
||||
|
Voltage |
three-phase alternating current |
||||
|
Foundation requirement |
1. Concrete thickness≥300mm |
||||
|
2. Concrete strength≥C20 (200Mpa） |
|||||
DFLIFT introduction：
When choosing your lift, choose a manufacturer you can trust. All of DFLIFT's products meet the highest quality and safety standards.
DFLIFT Enterpriser Limited is located in Jinan, China and was founded in 2000. Our R&D team, whose members have explored, studied and developed construction machinery for 16 years, specializing in the hydraulic lift platform.
When you have an access need – whether it is for a home, for a warehouse, or for a public facility – DFLIFT Lift can help you. Our comprehensive offering includes platform lifts, scissor lifts, goods lift, cargo lift, wheelchair lift, boom lift, trailer boom lit, dock ramp, disabled lifts, loading ramp, through floor lifts, home elevators, passenger lifts, portable wheelchair lifts and goods lifts, etc. We also offer a complete lift servicing, repair service.
If you require a full project management service, you can rest assured you are in capable hands with DFLIFT lift. Our multi-skilled staff can undertake all your surveying, preparatory and installation works, and we are always there to provide you with that all-important after-sales support.
