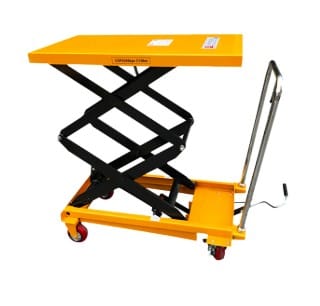

Lightweight Scissor Lift
Capacity: 150-3000KG
Lift Drive / Actuation: Hydraulic
Min. Lifting Height: 350mm
Hydraulic: Foot-type hydraulic
Product Type: Mini scissor lift table
Ideal for transporting loads to and from work cells, the portable lightweight scissor lift can be used as work platforms or raised and lowered to facilitate load products to tables or benches. Lightweight scissor lift is a device that employs a scissors mechanism to raise or lower goods and/or persons. Typically, lightweight scissor lifts are used to raise lightweight and small volume products through relatively small distances. Various needs from different fields can be meet here, which earn us a good reputation and a lot of faithful clients around the world.
|
Model |
BSS10 |
BSS20 |
BSS30 |
BSS50 |
BSS75 |
|
Lifting Capacity (kg) |
100 |
200 |
300 |
500 |
750 |
|
Min. Height (mm) |
265 |
330 |
330 |
435 |
442 |
|
Max. Height (mm) |
755 |
910 |
910 |
1000 |
1000 |
|
Platform Size (mm) |
700*450 |
830*500 |
830*500 |
1010*520 |
1010*520 |
|
Wheel Size (mm) |
100 |
125 |
125 |
150 |
125 |
|
Overall Size (mm) |
950*450*1000 |
1010*500*1000 |
1010*500*1000 |
1158*520*1000 |
1260*520*1000 |
|
Net Weight (kg) |
40 |
78 |
80 |
118 |
137 |

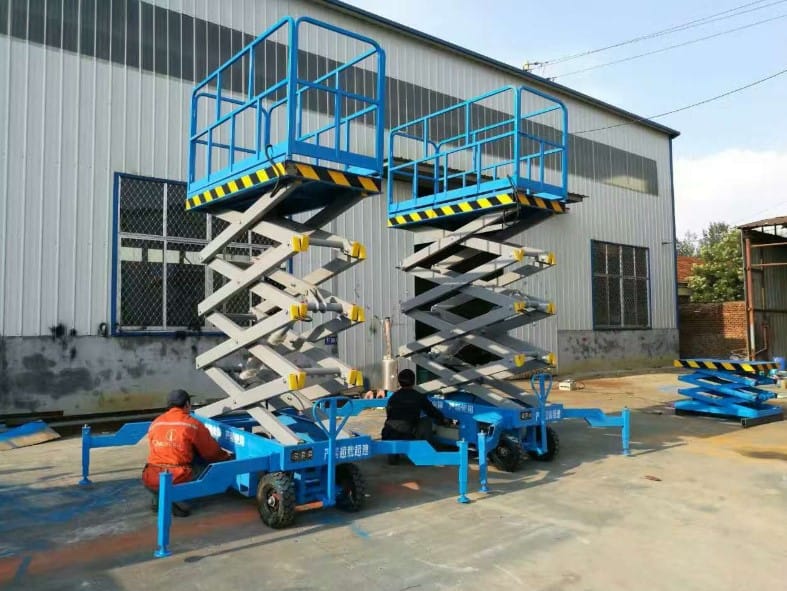

Lightweight mobile scissor lift manufacturer：
Rated Loading Capacity: 320kg 480kg
Min. Lifting Height: 800mm
Max. Lifting Height：16000mm
Main Material: High duty steel
After-sales Service Provided: Field installation, commissioning and training
Platform: Anti-skid Checkered Plate
Voltage: 110V,220V,380V, customized
Lightweight mobile scissor lift is famous for its small compact body size, simple structure and very low failure rate. Small scissor lift moves and lifts all by battery power. Operator can control lifting, moving, turning and all movement on the platform through the control system. Lightweight mobile scissor lift is equipped with two kinds of motors, hydraulic lifting motor and electric driving motor. Hydraulic lifting motor supply power to lift up and down smoothly. Electric driving motor supply power to move forward, backward, turn around.
|
Model |
SPS0.3-6 |
SPS0.3-8 |
SPS0.3-10 |
SPS0.3-12 |
|
Platform height |
6m |
8m |
10m |
12m |
|
Work height |
8m |
10m |
12m |
14m |
|
Load capacity |
300kg |
300kg |
300kg |
300kg |
|
Dimension |
2.48*0.81*1.87 |
2.48*0.81*1.89 |
2.48*1.5*1.92 |
2.48*1.15*2.04 |
|
Platform size |
2.27*0.81m |
2.27*0.81m |
2.27*1.12m |
2.27*1.12m |
|
Extension deck |
0.90m |
0.90m |
0.90m |
0.90m |
|
Drive motor |
24V/1.5KW |
24V/1.5KW |
24V/1.5KW |
24V/1.5KW |
|
Lift motor |
24V/3.3KW |
24V/3.3KW |
24V/4.5KW |
24V/4.5KW |
|
Travel speed |
4.0km/h |
|||
|
Wheel |
Φ300*100mm |
|||
|
Weight |
2125kg |
2180kg |
2965kg |
2910kg |
DFLIFT scissor lifts series:
We have many series lifting equipment, such as mobile scissor lift table, fixed lift table, chain guide lift table, aluminum alloy lifting table, automobile refitting table, folding arm, cylinder type, and logistic dock ramp, etc.
Type A. Lift table with wheel: --- suitable for factories, offices, shops and building decoration industry.
Type B. solid lift table: --- used in workshop, capacity can load 0.1- 10 tons.
Type C: chain guide lifts --- max load 10tons, used in chemical industry, high temperature, high pressure, power plant, nuclear industrial base, bomb explosion -proof enterprises, etc
Type D: Independent lift platform: --- special use age according clients demand
Type E : Scissor shape lift table: --- flexible stable lifting , convenient operation, lightweight
