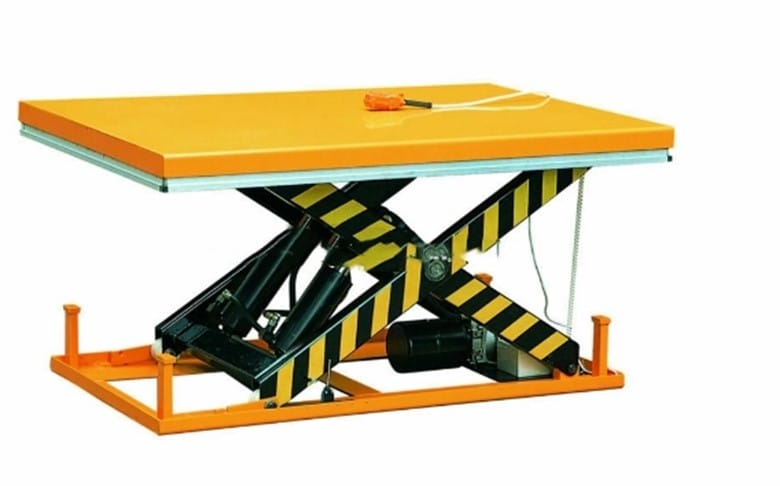

Low profile scissor lift Manufacture
Rated load:500kg 1000kg 1500kg 2000kg
The minimum height: 180mm
The highest height: 1000mm
Power supply: single-phase alternating current
Low profile scissor lift is 105mm above the ground at the lowest level. Low profile scissor lift balance system and mechanical safety with automatic unlock are equipped. Japanese oil sealing elements, oil pipe explosion protective device, overload protection, international brand oil pipe.
Laser cutting machine or other CNC equipment makes components. Alloy solid steel X structure, has good rust resistance and not easy to deformation. Shot blasting and high temperature baking powder coated surface finish. Ramp as extension suitable for different length of chassis with wear-resisting bearings.
|
Model |
HU600 |
HU1000 |
HU1500 |
|
|
Capacity |
kg |
600 |
1000 |
1500 |
|
Platform Size |
mm |
1450*985 |
1450*1140 |
1600*1180 |
|
Size A |
mm |
200 |
280 |
300 |
|
Size B |
mm |
1080 |
1080 |
1194 |
|
Size C |
mm |
585 |
580 |
580 |
|
Platform Min./Max. Height |
mm |
85/860 |
85/860 |
105/860 |
|
Base Size |
mm |
1335*947 |
1335*947 |
1335*947 |
|
Lift Time |
s |
25-35 |
25~35 |
20~40 |
|
Power supply |
V/Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
|
Net Weight |
kg |
207 |
280 |
380 |
|
Model |
Capacity |
Min./max. height |
Table Size |
Base Size |
Lifting Time |
Power |
N.W. |
|
kg |
mm |
mm |
mm |
s |
/ |
kg |
|
|
HY1001 |
1000 |
85/860 |
1450*1140 |
1325*1074 |
25 |
380V/50Hz |
357 |
|
HY1002 |
1000 |
85/860 |
1600*1140 |
1325*1074 |
25 |
380V/50Hz |
364 |
|
HY1003 |
1000 |
85/860 |
1450*800 |
1325*734 |
25 |
380V/50Hz |
326 |
|
HY1004 |
1000 |
85/860 |
1600*800 |
1325*734 |
25 |
380V/50Hz |
332 |
|
HY1005 |
1000 |
85/860 |
1600*1000 |
1325*734 |
25 |
380V/50Hz |
352 |
|
HY1501 |
1500 |
105/870 |
1600*800 |
1325*734 |
30 |
380V/50Hz |
302 |
|
HY1502 |
1500 |
105/870 |
1600*1000 |
1325*734 |
30 |
380V/50Hz |
401 |
|
HY1503 |
1500 |
105/870 |
1600*1180 |
1325*734 |
30 |
380V/50Hz |
415 |
|
HY2001 |
2000 |
105/870 |
1600*1180 |
1427*1114 |
35 |
380V/50Hz |
419 |
|
HY2002 |
2000 |
105/870 |
1600*1000 |
1427*734 |
35 |
380V/50Hz |
405 |

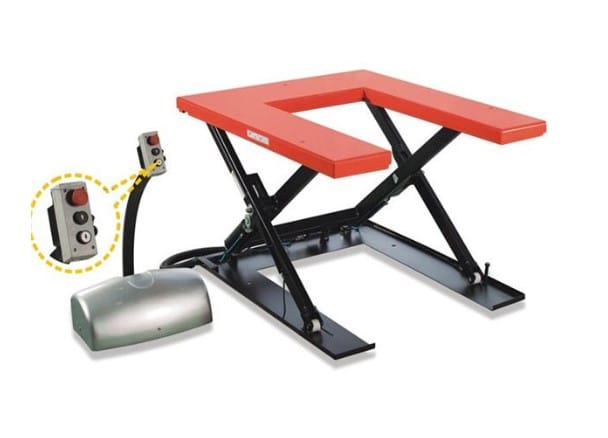

U-shaped electric low profile scissor lift price
Rated load:500kg 1000kg 1500kg 2000kg
The minimum height: 180mm
The highest height: 1000mm
Power supply: single-phase alternating current
U-shaped electric low profile scissor lift are specially for handling pallets, no need for a pit or load ramps; Heavy Duty Design 600-1500kg; Meet EN1570 norm and ANSI/ASME safety standards;
Remote Power pack with pedestal and controls, protected to IP54. Upper U-shaped electric low profile scissor lift fitted with safety perimeter to prevent descent on contact with obstructions. 24V control box with UP and DOWN buttons and emergency stop. External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed. Hose burst safety valve to stop the lift table lowering a case of hose breakage.
