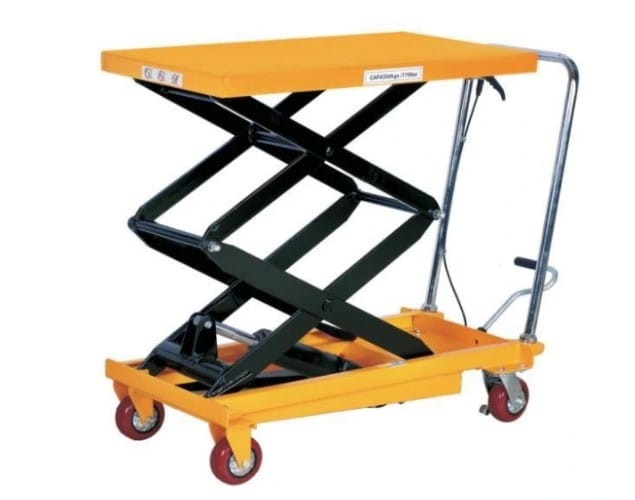

Manual scissor lift with design
The lifting design can be design 150-1000kg; Manual scissor lift is reliable and steady performance with high quality oil cylinder; Anti-pinch and overload protection function on the scissor lift. So it is very safe to operate. The manual scissor lift widely used in repair, production and packaging assembly line and so on. Security support bar on the manual scissor lift can prevent table sudden fall down. Our scissor lift can meet the European standards EN1570:1999.
Capacity:150-3000KG
Lift Drive / Actuation:Hydraulic
Min. Lifting Height:350mm
Hydraulic:Foot-type hydraulic
Product Type:Mini scissor lift table
Foot pedal to lift up, easy operation.
Load capacity 1000kg, 1500kg, 2000kg
Foldable handle can be option
Hand tips/press button to lower down the table
Double Pump, heavy duty design
Oil-leaking proof design
|
Model |
SC-125-D-M |
SC-150-S-M |
SC-300-S-M |
SC-300-D-M |
SC-450-D-M |
SC-500-S-M |
|
|
Capacity |
(kg) |
125 |
150 |
300 |
300 |
450 |
500 |
|
Max. Height |
A (mm) |
1420 |
780 |
840 |
1350 |
1550 |
900 |
|
Min. Height |
B (mm) |
430 |
255 |
335 |
295 |
295 |
340 |
|
Platform Width |
C (mm) |
500 |
450 |
500 |
590 |
610 |
610 |
|
Platform Length |
D (mm) |
840 |
760 |
840 |
840 |
1030 |
1030 |
|
Overall Size |
E×F (mm) |
1090×500 |
990×450 |
1050×500 |
1190×640 |
1350×665 |
1320×610 |
|
Scissors |
2 |
1 |
1 |
2 |
2 |
1 |
|
|
Operation |
Manual |
Manual |
Manual |
Manual |
Manual |
Manual |
Why choose DFLIFT:
DFLIFT focus on the development, design, production of hydraulic lifting, who is a professional manufacture of kinds of hydraulic lifting platform in china for many years. With good quality and pretty competitive price, here are our main products: mobile scissor lift, stationary scissor lift, self-propelled scissor lift, mobile container yard ramp, dock leveler, boom lift, wheelchair lift for the disabled people, mast type aluminum lift platform, vertical goods lift, car lift, trolley, vehicle-mounted lift platform.
