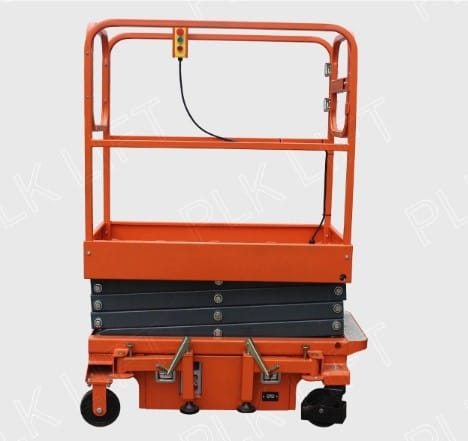

Narrow Self Propelled Scissor Lift In Low Price
Rated Loading Capacity: 300KG
Lift Drive / Actuation: Hydraulic
Battery: 2*12V/80Ah
Certification: CE ISO9001
Control Mode: Self-Propelled
Lifting Height: 3-14m
Narrow Self Propelled Scissor Lift is specially design for indoors aerial work. It is famous for its extreme small body size and lightweight. Now it is widely used in supermarket, low height maintenance, decoration Company and domestic maintenance. Narrow Self Propelled Scissor Lift moves by man manually and lifts by battery power. Narrow Self Propelled Scissor Lift is famous for its small compact body size, simple structure and very low failure rate. Small scissor lift moves and lifts all by battery power. Operator can control lifting, moving, turning and all movement on the platform through the control system.
|
Model Type |
Unit |
SPS3.0 |
SPS3.9 |
|
Max. Platform Height |
mm |
3000 |
3900 |
|
Max. Working Height |
mm |
5000 |
5900 |
|
Lift Rated Capacity |
kg |
300 |
300 |
|
Ground Clearance |
mm |
60 |
|
|
Platform Size |
mm |
1170*600 |
|
|
Wheelbase |
mm |
990 |
|
|
Min. turning radius |
mm |
1200 |
|
|
Max. Drive peed(Platform Lifted) |
km/h |
4 |
|
|
Max. Drive e Speed(Platform Lowered) |
|
0.8 |
|
|
Lifting/falling speed |
sec |
20/30 |
|
|
Max. Travel Grade |
% |
10-15 |
|
|
Drive motors |
V/Kw |
2×24/0.3 |
|
|
Lifting motor |
V/Kw |
24/0.8 |
|
|
Battery |
V/Ah |
2×12/ 80 |
|
|
Charger |
V/A |
24/15A |
|
|
Max allowable working angle |
|
2° |
|
|
Overall Length |
mm |
1180 |
|
|
Overall Width |
mm |
760 |
|
|
Overall Height |
mm |
1830 |
1930 |
|
Overall Net Weight |
kg |
490 |
600 |
Advantages of DFLIFT:
DFLIFT strives for providing customers high quality automotive equipment with best price. All the members of DFLIFT have rich experience and innovative spirit. The products has good reputed among all customers not only for the high quality guarantee but also for the superior services.
Main products including two post lifts, four post lifts, full-rise scissor lifts, mid-rise scissor lifts, tire changers, wheel balancers, and shop presses, hydraulic jacks, cranes and other related products.
Exported top Asia, Europe, America and Austral. We have established long-standing and stable business relationships with much renowned company.
