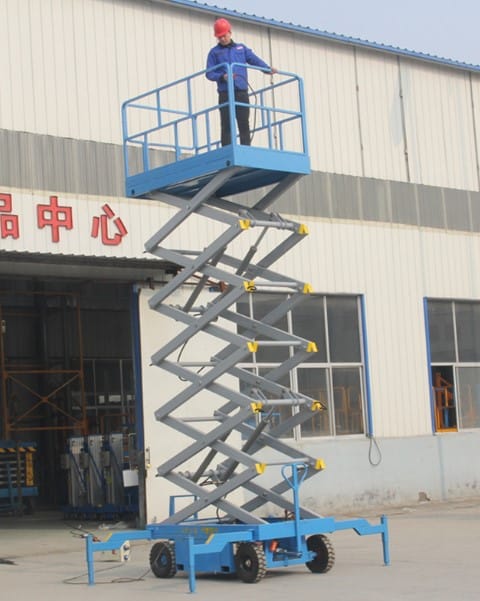

Outdoor Scissor Lift with certificates
Rated load 300 (kg)
Maximum height: 10m
Machine weight: 2880 (kg)
Power supply: battery or diesel electric hydraulic
Lifting time: 35s
Certification:CE ISO9001 SGS
Material:High-duty Steel Structure
Warranty:24 Months
Outdoor scissor lift is widely used in high-altitude installation and maintenance operations. The characteristics of free lifting of the lifting platform have been widely used in municipal maintenance, cargo transportation in docks and logistics centers, building decoration, etc. The chassis of the car, the chassis of the outdoor scissor lift can be freely walked, the working height space is also changed, and the weight is light and self-propelled. Electric start, self-supporting legs, simple operation, large working surface, and the ability to perform 360-degree free rotation such as working at heights across obstacles.
|
Model |
Capacity(T) |
Platform Size (Customized) |
Lifting height |
Self-weight |
|
GTJZ06 |
300 |
2.655*1.35m |
6M |
2550kg |
|
GTZ08 |
300 |
2.655*1.35m |
8M |
2680kg |
|
GTZ10 |
300 |
2.655*1.55m |
10M |
2920kg |

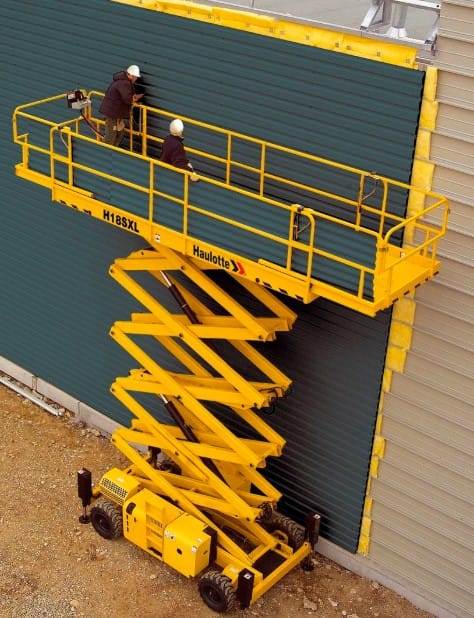

Outdoor diesel scissor lift dealer
Rated Loading Capacity：230kg-680kg
Platform height:8m 10m 12m 14m 16m
Type:Diesel engine lift platform
Control voltage:12 V DC
Power supply: diesel engine
Outdoor diesel scissor lift adopts the newest technologies and ergonomic concepts in designing and manufacturing. Outdoor diesel scissor lift with low cost of ownership, superior visibility, unmatched technique, safety and ergonomics designing for operator. Outdoor diesel scissor lift can be widely used in warehouse, factory, port and construction plant, etc.
Outdoor scissor lift manufacturer:
Henan DFLIFT machinery co., ltd. is known for having outdoor scissor lifts platforms and double extension decks for increased working area. One of the best things about their outdoor scissor lift is it has quick acting stabilizers suitable for levelling on most terrains. This highly reliable equipment has full proportional controls and maximum drive speed of 3.7 mph or 6km/h. This also boasts of hydraulic differential lock for improved rough terrain capability and outdoor scissor lift compact height and width makes transport and movement easier and faster. best of all, it has foam filled tires and is recognized internationally for being robust, dependable and easy to maintain.
