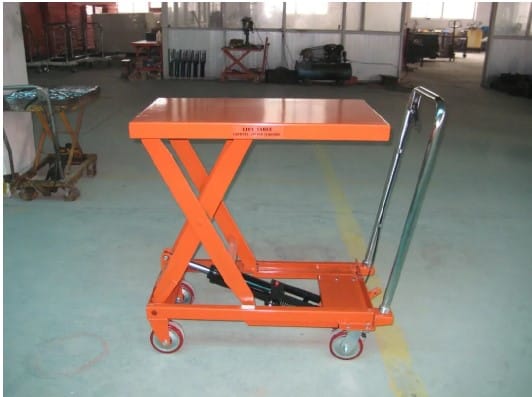

Scissor lift trolley
Capacity:150-3000KG
Lift Drive / Actuation:Hydraulic
Min. Lifting Height:350mm
Hydraulic:Foot-type hydraulic
Product Type:Mini scissor lift table
The manual scissor lift trolley has novel design, reasonable mechanism and convenient use. Scissor lift trolley is suitable for loading, unloading, handling and stacking of factory barrels in factories, workshops, warehouses and oil depots. Scissor lift trolley is especially suitable for chemical industry, food workshop dumping or ingredient use, and can be heavy loading and unloading cars, stacking, and working with hydraulic drum trucks can greatly improve work efficiency and reduce labor intensity. It can also be modified for loading, unloading, and lifting heavy objects. Scissor lift trolley is a new type of ideal multi-purpose. Take-off and landing machinery.
|
Model |
HW-150 |
HW-300 |
HW-500 |
HW-750 |
HW-300D |
|
Name |
Hydraulic Scissor lift table |
Double hydraulic Scissor lift table |
|||
|
load-bearing(kg) |
150 |
300 |
500 |
750 |
300 |
|
Overall dimensions(mm) |
900*450*900 |
1050*520*900 |
1120*520*900 |
1120*520*900 |
1050*520*900 |
|
Platform size(mm) |
708*450 |
820*520 |
820*520 |
820*520 |
820*520 |
|
Min height(mm) |
225 |
240 |
260 |
280 |
360 |
|
Max height(mm) |
700 |
750 |
780 |
780 |
1220 |
|
Wheel size(mm) |
Φ100*w30 |
||||
|
package size(mm) |
810*490*250 |
920*590*250 |
920*560*300 |
920*590*300 |
920*570*380 |
|
Weight(kg) |
49 |
66 |
75 |
75 |
103 |

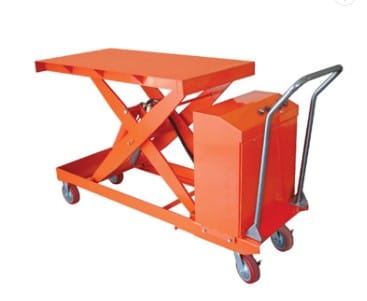

Electric scissor lift trolley：
Rated Loading Capacity：150kg-2000kg
Max. Lifting Height：700-2000mm
Lifting mechanism:Electric motor
Lift Drive / Actuation:Hydraulic
Electric scissor lift trolley is applicable to a variety of applications for logistics center, warehouse, factories where there are loading dock and loading bay to transfer goods between different levels. It is light and easy to be trailered by one person. Up and down will be finished by battery. To protect power unit, the continuing working time should be less than 30 seconds (about 2 working cycles), start to work again after 3 minutes.
Valuable material handling equipment for use as a feeding table on assembly line.
Structural heavy-duty steel construction.
Easy action foot operated hydraulic lift for raising tabletop to desired level.
Hand operated table descent control.
Over load by-pass valve protects operator and pump.
|
Model |
DP30 |
DP50 |
DP35 |
|
Loading capacity (kg) |
300 |
500 |
350 |
|
Min. lifting height (mm) |
280 |
280 |
280 |
|
Max. lifting height (mm) |
900 |
900 |
1300 |
|
Table size (mm) |
950*500*50 |
950*500*50 |
950*500*50 |
|
Wheel size (mm) |
125 |
125 |
125 |
|
Voltage (V) |
12 |
12 |
12 |
|
Power (kw) |
800 |
800 |
800 |
|
Battery (ah) |
65 |
65 |
65 |
|
Input voltage (V) |
220/110 |
220/110 |
220/110 |
|
Net weight (kg) |
110 |
140 |
120 |

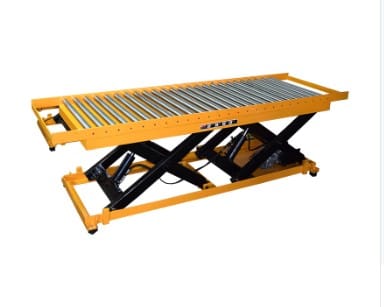

Roller table scissor lift trolley:
Capacity:150-3000KG
Lift Drive / Actuation:Hydraulic
MAX. Lifting Height:700-2000mm
Hydraulic:Foot-type hydraulic
Product Type:Mini scissor lift table
Hydraulic lifting table is upgrade from the standard scissor lift table, we will add and manual or electric roller platform on the table, making the goods transport more smoothly. The load capacity, lifting height and platform, also can be customized. In addition, the voltage from 220-240V, 380-415V. The hydraulic lifting table can making the work more convenient and easily, that making it popular in the all over world.

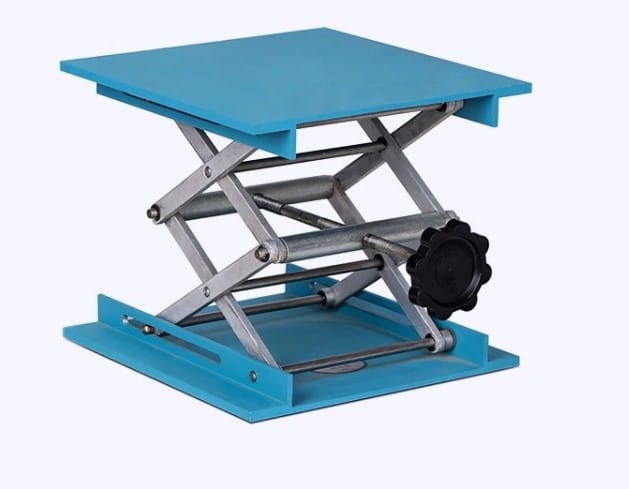

Stainless steel/aluminum alloy scissor lift table trolley
Capacity:150-1000KG
Lift Drive / Actuation:Hydraulic
Max. Lifting Height:700-2000mm
Hydraulic:Foot-type hydraulic
Product Type:Mini scissor lift table
Why choose DFLIFT Scissor lift?
The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1) Strict quality control system on the whole process of production
2) Imported key arts to ensure the high quality of our products
3) Advanced equipment and tools for examination and quality control
4) 100% strict examining products before shipment
5) All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
