Scissor Man Lift Manufacture
Rated Loading Capacity: 320kg 480kg
Min. Lifting Height: 800mm
Max. Lifting Height：16000mm
Power supply: battery or diesel electric
After-sales Service Provided:Field installation, commissioning and training
Platform:Anti-skid Checkered Plate
Voltage:110V,220V,380V, customized

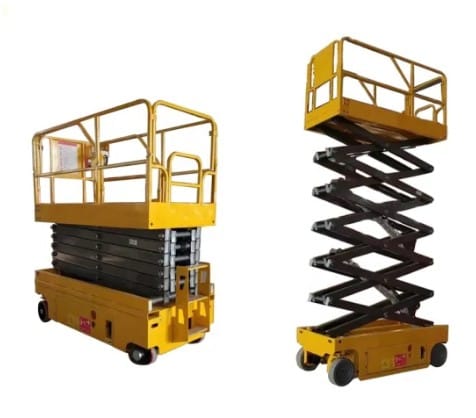

Scissor man lift is the professional man operation equipment. Its scissor mechanical structure makes the lifting platform lift more stable. Wide working platform and large loading capacity can make the work scope bigger. Therefore, it's suitable for several workers working together as well.
The height of the scissor man lift is optional; generally, we have 4m, 6m, 8m, and 10m. Moreover, the maximum height of the scissor man lift can reach 12m. Furthermore, the loading capacity of the scissor lift could be 300kg, 500kg, 800kg, 1000kg and so on.
Its maximum capacity can reach 7000kg.
|
Data/Model |
DFPT-6HD |
DFPT-8HD |
DFPT-10HD |
DFPT-12HD |
|
Lifting height(mm) |
6000 |
8000 |
10000 |
11800 |
|
Max. working height(mm) |
8000 |
10000 |
12000 |
13800 |
|
Load capacity(kg) |
380 |
320 |
300 |
300 |
|
Guardrail height(mm) |
1100 |
1100 |
1100 |
1100 |
|
Extend platform capacity(kg) |
100 |
100 |
100 |
100 |
|
Platform size(mm) |
2700*810 |
2270*1120 |
2270*1120 |
2270*1120 |
|
Extend platform length(mm) |
870 |
900 |
900 |
870 |
|
Overall size(mm) |
2270*810*1850 |
2480*1160*2320 |
2480*1150*1920 |
2480*1160*2610 |
|
Grade ability |
25% |
25% |
25% |
25% |
|
Lift motor |
24V/3KW |
24V/3KW |
24V/3KW |
24V/4.5KW |
|
Drive speed(stowed) |
3.5km/h |
3.5km/h |
3.5km/h |
3.5km/h |
|
Drive speed(raised) |
0.8km/h |
0.8km/h |
0.8km/h |
0.8km/h |
|
Maintenance-free Battery V/Ah |
4*6/450 |
4*6/450 |
4*6/450 |
4*6/450 |
|
Self Weight(kg) |
2000 |
2100 |
2500 |
3000 |

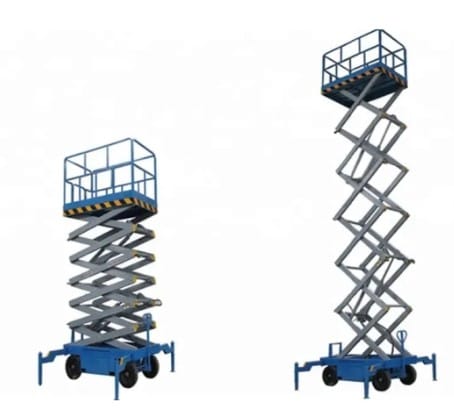

Mobile scissor man lift Specifications：
Load capacity: 300kg-2000kg
Max. Lifting Height：18m
Lifting speed:4-6m/min
Power:AC&DC choice
Electric hydraulic model
Mobile scissor man lifts are used for lifting workers to the high level, which are made electric powered with Trojan battery, provides the power to move and steer around.
Fully self-walk and up down system makes it more convenient for one person to operate on the platform. Mobile scissor man lift platform is also used in lifting equipment maintenance, outdoor electric power facilities maintenance, steel structure factory building maintenance, etc.
|
Mobile scissor man lift |
Platform size(mm) |
Load (kg) |
Height(m) |
Overall size (mm) |
Weight (kg) |
|
SJY0.3-4 |
2100*830 |
300 |
4 |
2250*950*1100 |
800 |
|
SJY0.3-6 |
2100*830 |
300 |
6 |
2250*950*1200 |
880 |
|
SJY0.3-7 |
2100*830 |
300 |
7 |
2250*950*1280 |
970 |
|
SJY0.3-8 |
2100*930 |
300 |
8 |
2250*1060*1380 |
1050 |
|
SJY0.3-9 |
2100*930 |
300 |
9 |
2250*1060*1500 |
1165 |
|
SJY0.3-10 |
2100*1230 |
300 |
10 |
2250*1350*1530 |
1360 |
|
SJY0.3-11 |
2100*1230 |
300 |
11 |
2250*1350*1650 |
1400 |
|
SJY0.3-12 |
2550*1530 |
300 |
12 |
2720*1670*1750 |
2260 |
|
SJY0.3-14 |
2812*1530 |
300 |
14 |
3045*1730*1810 |
2400 |
|
SJY0.3-16 |
2812*1600 |
300 |
16 |
3045*1800*2080 |
3500 |
|
SJY0.3-18 |
3070*1600 |
300 |
18 |
3250*1800*2080 |
3900 |
FAQ of scissor man lift for sales:
A This is the first time I use scissor man lift, is it easy to operate?
There are English manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trade manager online service at any time.
B If scissor man lift e have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
C MOQ ?
The minimum order is 1 set scissor man lift, if you order more one time, the price will be better.
D How can I buy this scissor man lift from you? ( Very easy and flexible !)
- Consult us about this product on line or by e-mail.
- Negotiate and confirm the final price , shipping , payment methods and other terms.
- Send you the proforma invoice and confirm your order.
- Make the payment according to the method put on proforma invoice.
E 9 good reasons why you should buy scissor man lift from us?
1 we are a real factory offering products
2 free technical advice by QUALIFIED MECHANICAL ENGINEERS
3 company in business for many years
4 over 50 countries customers served!
5 buy direct saving your money!
6 all machine with CE, ISO, BV certificate.
7 our engineer can go to your country to provide technical guidance
8 we have phone support in English, if you have any questions, you can call it,we can give you a best solution within 24 hours
9 fast delivery, save your time.
