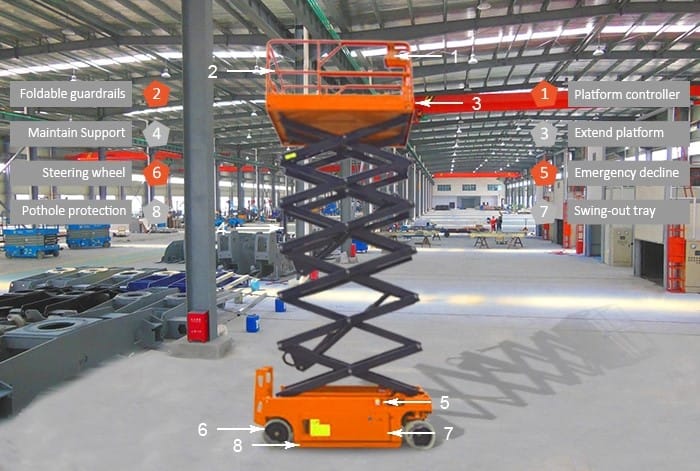

Self-propelled scissor lift manufacturer:
Rated Loading Capacity: 320kg 480kg
Min. Lifting Height: 800mm
Max. Lifting Height：16000mm
Main Material:High duty steel
After-sales Service Provided:Field installation, commissioning and training
Platform:Anti-skid Checkered Plate
Voltage:110V,220V,380V, customized
The self-propelled electric lifting platform is a hydraulic lifting mechanical device with automatic walking function. It can be used in different working conditions without external power supply, without manual traction, flexible movement, convenient operation and free movement. Only one person can complete the advancement. Back, steering, fast, slow walking, up, and down movements, saving labor and effort. It is especially suitable for a wide range of aerial work such as stations, docks, airports, stadiums, and large enterprises. It is currently an ideal aerial work equipment in China.
|
Model |
SPS0.3-6 |
SPS0.3-8 |
SPS0.3-10 |
SPS0.3-12 |
|
Platform height |
6m |
8m |
10m |
12m |
|
Work height |
8m |
10m |
12m |
14m |
|
Load capacity |
300kg |
300kg |
300kg |
300kg |
|
Dimension |
2.48*0.81*1.87 |
2.48*0.81*1.89 |
2.48*1.5*1.92 |
2.48*1.15*2.04 |
|
Platform size |
2.27*0.81m |
2.27*0.81m |
2.27*1.12m |
2.27*1.12m |
|
Extension deck |
0.90m |
0.90m |
0.90m |
0.90m |
|
Drive motor |
24V/1.5KW |
24V/1.5KW |
24V/1.5KW |
24V/1.5KW |
|
Lift motor |
24V/3.3KW |
24V/3.3KW |
24V/4.5KW |
24V/4.5KW |
|
Travel speed |
4.0km/h |
|||
|
Wheel |
Φ300*100mm |
|||
|
Weight |
2125kg |
2180kg |
2965kg |
2910kg |
|
Name |
Origin |
Brand |
|
DC motor |
Korea |
Hydra Power(5.0ml/r) |
|
Hydraulic pump station |
Korea |
Hydra Power |
|
Block assemble (include solenoid valve) |
Italy |
SANT |
|
BK Brake |
USA |
White |
|
RE Motor |
USA |
White(375ml/r) |
|
Brake release pump |
USA |
White |
|
Battery |
USA |
Trojan |

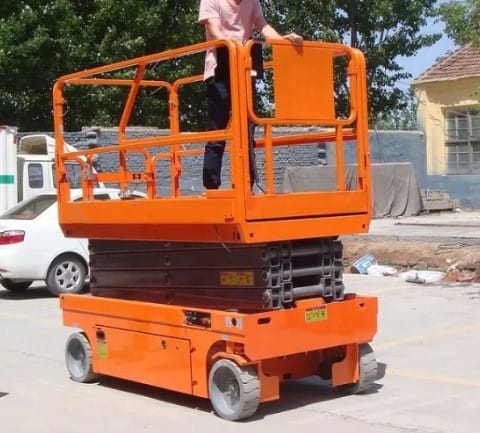

Mini scissor lift for sale:
Rated Loading Capacity: 230kg 300kg
Max. Lifting Height：5.8m 19 ft.
Platform:Anti-skid Checkered Plate
Voltage:110V,220V,380V, customized
Mini scissor lift s are generally used for high-altitude operations of 2-3 meters or more. Hydraulic or electric powered multiple hydraulic cylinders can make it float up and down. When working on self-propelled lifts, it requires strict operation and proper use. To ensure safety. Mini scissor lift s are widely used in urban construction, transportation, municipal and other industries for aerial work, with the following industry characteristics:
1,Strong professionalism and small production volume for the industry.
2, with high-tech requirements, high added value characteristics.
3, the security system is high, usually tailored according to the working environment.
DFLIFT Self-propelled scissor lift advantages:
The self-propelled lift has self-propelled and steering drive functions, does not require external power traction, and does not require an external power supply. Only one person can complete the operations of advancing, retreating, ascending, descending, turning left, and turning right of the lifting platform, greatly improving the work. Efficiency, reducing the number of operators and labor, dynamic strength, more labor and effort.
