Single scissor lift supplier
Single scissors, as the name suggests, lifting mechanism is a single scissor. This structure is suitable for the use of low lifting height environment. Single scissor lift table have multi-purpose applications and are normally use to solve issues with handling, difference in levels, production and logistic areas! Single scissor lifts includes stationary single scissor lift, single scissor lift table. The customer can choose according to their needs. One is moveable type, another is fixed on the ground.

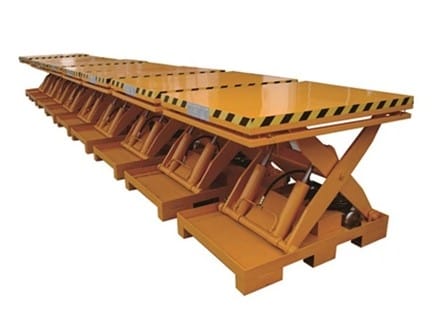

Single stationary scissor lift
Model: single scissor lift
Rated Loading Capacity: 300-30ton
Certification: CE ISO
Control method: Control panel or control box
Lift Drive / Actuation: Electric Motor
Single stationary scissor lift possesses the driving functions of moving and changing directions, and no manual hauling, no external power is needed, which makes the high operation more convenient. Single stationary scissor lift widely used in electrical, mechanical, utilities, chemical, railway stations, docks, airports and other industry equipment installation, electrical maintenance, high operating and so on. The main support steel structure consists of rectangular steel profiles to assure the highest stability and resistance. The scissor lift work platform are fitted with safety or guard rails around the platform itself to contain.
|
Model |
Lifting height (m) |
Min. height (mm) |
Loading capacity (kg) |
Table size (m) |
Power (kw) |
Rising time (s) |
|
|
SJG0.5-4.5 |
4.5 |
750 |
500 |
2*1 |
2.2 |
77 |
|
|
SJG1.0-4.5 |
4.5 |
850 |
1000 |
2*1.5 |
3.0 |
80 |
|
|
SJG2.0-4.5 |
4.5 |
900 |
2000 |
2.2*1.5 |
2.2 |
90 |
|
|
SJG1.0-7.5 |
7.5 |
990 |
1000 |
2.2*1.8 |
3.0 |
100 |
|
|
SJG2.0-7.5 |
7.5 |
1065 |
2000 |
2.4*2.4 |
4.0 |
105 |
|
|
SJG2.0-1.8 |
1.8 |
700 |
2000 |
2.5*2 |
3.0 |
50 |
|
|
SJG5.0-1.8 |
1.8 |
960 |
5000 |
3.5*2.5 |
4.0 |
88 |
|
|
Lift height & Bearing capacity & Table size all can be customized. |
|||||||
Single scissor lift table for sale
Rated Loading Capacity: 150kg 300kg 500kg 1000kg 1500kg 2000kg,330 lbs. 660 lbs. 1100 lbs. 2200 lbs. 3300 lbs. 4400 lbs.
After-sales Service Provided: Online support, Engineers available to service machinery overseas
Certification: CE ISO
Single scissor lift tables with lightweight and compact structure, which is easy to turn around and carry. This single scissor lift is easy to operate just by a single person. They are fully tested prior to dispatch and are ready to use when delivered. Each table is CE marked and complies with the requirements of EN 1570-1 + A1, 2nd version 2014-10-09.Accessories are available to order, including extra hand controller, limit switch, bottom frame with wheels and tuck frame. In addition, it is designed for material handling and all kinds of assembly line.
Advantages
- Provide a various kinds of lift platform for aerial work , which could meet customer's needs.
- We could help customer choose the right model and also provide customization.
- All electrical elements are used world famous brand.
- Provide timely delivery, professional and technical staff are ready to solve all problem.
Provide spare parts, worksite installation guidance and training operation
