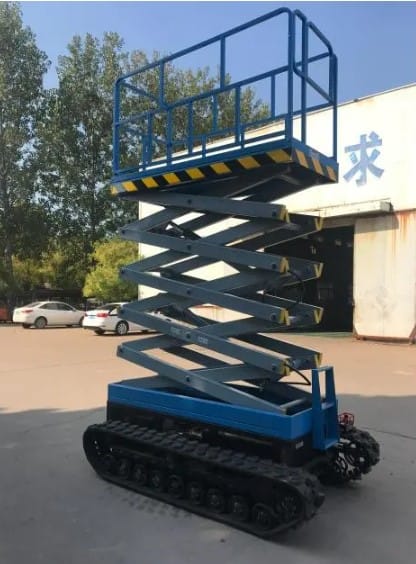

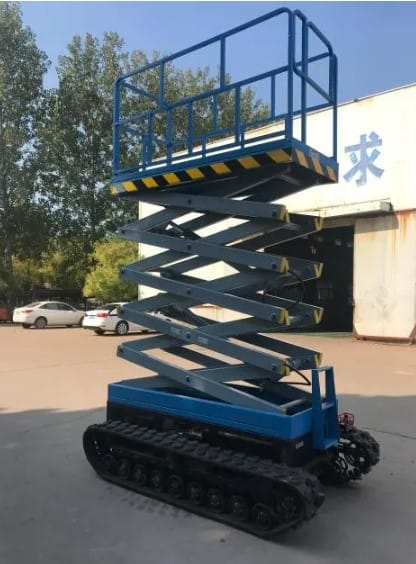

Tracked scissor lift (off road scissor lift)：
Rated load 300 (kg)
Maximum height: 10m
Machine weight: 2880 (kg)
Power supply: battery or diesel
Lifting time: 35s
Certification: CE ISO9001 SGS
Material: High-duty Steel Structure
Warranty:24 Months
Crawler Scissor Lifts are wildly applied to: building works, such as scaffolding, cladding, painting, air-conditioning, heating insulation, sandblasting. Maintenance works, such as cleaning, installation, decoration, inspection, repairing and maintenance in workshops, airports, factories, companies, railway stations, docks, exhibition halls. Crawler Scissor Lifts can work without being limited by the road conditions. Crawler Scissor Lifts is perfectly suitable for bad road conditions, such as muddy, snowy, sandy road. With stable and secure structure, it is widely used for the wild jungle.
|
model |
table size |
Overall dimensions |
Platform height |
load |
Platform overhanging |
weight |
|
GTJZ06 |
2.26×0.81 |
2.655×1.35×2.33 |
6M |
300KG |
0.9 |
2750kg |
|
GTJZ08 |
2.26×0.81 |
2.655×1.35×2.48 |
8M |
300KG |
0.9 |
2880kg |
|
GTJZ10 |
2.26×0.81 |
2.655×1.55×2.61 |
10M |
300KG |
0.9 |
3020KG |
DFLIFT tracked scissor lift special design:
- Products advantages
Mini Crawler Scissor Lifts does not need any outriggers; one man operates on the working platform.
Moving forward, turning around and lifting up are easily operated.
Short chargeable time and long Dural time of the battery.
Easily moved, spacious working platforms, smooth working condition and high working efficiency
- Moving method
The chargeable battery provides the power to move and steer around.
- Lifting Power
The chargeable battery provides the power to raise up the lift platforms.
- Applications
It is widely used for aerial installation and maintenance of the working sites without power supply and with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, warehouse, granary, bus/railway stations, hotels, airports, gas station and aerial pipeline.
